R8222D1014

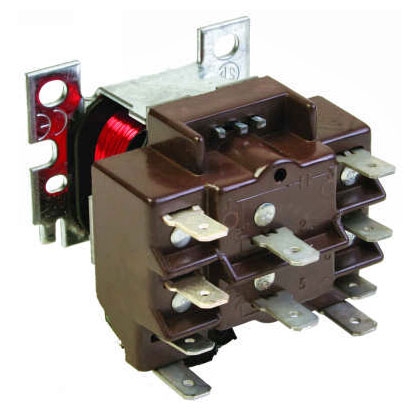

R8222D1014 Honeywell DPDT Relay – 24V AC coil, general-purpose switching relay with high contact ratings and double quick-connect terminals.
In Stock (396)
Availability: In stock
$35.49
Details
Details
R8222D1014 Honeywell – DPDT General Purpose Switching Relay (24V AC Coil)
The Honeywell R8222D1014 is a reliable, general-purpose DPDT relay with a 24V AC coil, designed for a wide range of heating, ventilation, and air conditioning (HVAC) applications. This relay features double quick-connect coil terminals and robust contact ratings, making it ideal for switching heavy loads in commercial and residential systems.
It supports a full load contact rating up to 12 Amps at 120V AC and resistive ratings up to 20.8 Amps, ensuring dependable performance. Designed to operate in harsh environments with a temperature range from -20°F to 150°F, this relay is a trusted solution for HVAC professionals.
Specifications:
-
Coil Voltage: 24V AC
-
Contact Type: DPDT (Double-Pole, Double-Throw)
-
Terminals: 1/4" Quick Connect, Double QC Coil
-
Temperature Range: -20°F to 150°F
-
Contact Ratings:
-
Full Load: 12A @ 120V AC, 6A @ 208/240/277V AC, 3A @ 480V AC
-
Locked Rotor: 60A @ 120V AC, 35A @ 208/240/277V AC, 18A @ 480V AC
-
Resistive: 20.8A @ 120/208/240/277V AC, 10A @ 480V AC
-
Pilot Duty: 25 VA @ 24V AC, 125 VA @ 120/240/480V AC
-
Powerpile (NO Contacts): 0.25A @ 0.25–12V DC
-
Applications:
Ideal for HVAC systems, fans, blowers, compressors, and other electrical load switching in residential and commercial environments.
Additional Info
Additional Info
| Name | R8222D1014 | |||
|---|---|---|---|---|
| Documentation | R8222D1014 Honeywell DPDT RELAY, 24V AC COIL, DOUBLE QC COIL
R8222D1014 Shipping: |
|||
| Manufacturer | Honeywell | |||
| UPC: | R8222D1014 Honeywell |
