THX9421R5021WW
THX9421R5021WW Honeywell - Programmable 2-Wire IAQ HD color touchscreen; Up to 4H/2C heat pump or up to 3H/2C conventional; White front & sides; Screw terminals; R, C then RedLINK to Equipment Interface Module, Terminal Designations.
Replaces: THX9321R5030 THX9421R5021WW, THX9321R5000
Can be used to replace: THX9421R5021BB (Beige), and THX9321R5030
In Stock (8)
Availability: In stock
$436.33
Details
Details
THX9421R5021WW Honeywell

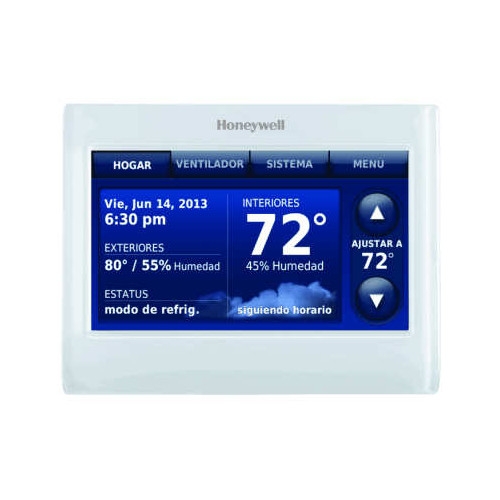

The THX9421R5021WW Honeywell is a Prestige® IAQ thermostat 2 wire high definition color touch screen thermostat, 7 day programmable and selectable for residential or light commercial use. Controls up to 4-stages of heat and 2-stages of cool in a heat pump system and up to 3-stages of heat and 2-stages of cool in a conventional system. Three sets of Universal IAQ contacts to control humidification, dehumidification, and ventilation. Four sensor inputs for wired sensors or dry contact devices. Works with the Equipment Interface Module and RedLINK® accessories including the RedLINK® Internet Gateway, Portable Comfort Control, Wireless Outdoor Sensor and Wireless Indoor Sensor.
| Hazmat Information | UN 3091 Lithium metal batteries packed in/with equipment |
| Application | Up to 4 Heat/2 Cool Heat Pumps; Up to 3 Heat/2 Cool Conventional Systems |
| Dimensions | 3 1/2 in. High, 4 1/2 in. Wide, 7/8 in. Deep 88 mm. High, 115 mm. Wide, 22 mm. Deep |
| Used With | THM5421R1021 Equipment Interface Module and RedLINK™ accessories |
| Comments | Tri-Lingual Display (selectable for English, French or Spanish) |
| Electrical Rating | 18 to 30 Vac |
| Frequency | 50 Hz; 60 Hz |
| Stages | Up to 4 Heat/2 Cool Heat Pumps; Up to 3 Heat/2 Cool Conventional Systems, See Equipment Interface Module |
| Electrical Connections | Screw terminals |
| Operating Humidity Range (% RH) | 5 to 90% RH, non-condensing |
| Supply Voltage | 18 to 30 Vac |
| Switch Positions (System) | HEAT-OFF-COOL-AUTO-EM.HEAT |
| Switch Positions (Fan) | AUTO-ON-CIRC-FOLLOW SCHEDULE |
| Operating Temperature Range | 32 F to 120 F 0 C to 48.9 C |
| Color | Front: White, Side: White |
| Programmability | 7-Day Multiple Day Programming or Non-Programmable |
| Power Method | Hardwired |
| Terminal Designations | R, C then RedLINK to Equipment Interface Module |
| Display Size | 8.06 sq in. |
| Changeover | Auto or Manual |
| Setting Temperature Range | Heat: 40 F to 90 F; Cool 50 F to 99F Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C |
| Humidification Setting Range | Cooling: 40 to 80% RH. Heating: 10 to 60% RH. |
| Dehumidification Setting Range | 40 to 80% RH. |
| External Sensors Available | N/A |
Additional Info
Additional Info
| Name | THX9421R5021WW |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | THX9421R5021WW Honeywell |
