YTHX9321R5061
YTHX9321R5061 Honeywell - YTHX9321R5061 Prestige 2.0 HD Comfort System Kit for the Prestige Comfort System. RedLINK Enabled.
REPLACES: YTHX9321R5003 YTHX9321R1000
Availability: In stock
$511.00
Details
Details
YTHX9321R5061 Honeywell

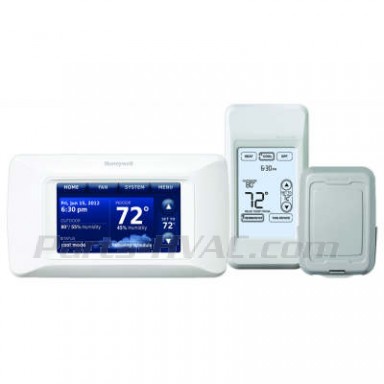

YTHX9321R5061 Honeywell Prestige® 2.0 HD Comfort System Kit for the Prestige Comfort System, RedLINK™ Enabled.
Kit Includes Prestige 2.0 HD Thermostat, Portable Comfort Control and Wireless Outdoor Air Sensor. Selectable for Residential or Commercial. Up to 3H/2C Heat Pump and Up to 2H/2C Conventional.
| Hazmat Information | UN 3091 Lithium metal batteries packed in/with equipment |
| Application | Up to 2 Heat/2 Cool Conventional Systems,Up to 3 Heat/2 Cool Heat Pumps |
| Includes | THX9321R5030 Prestige 2.0 HD Thermostat, REM5000R1001 Portable Comfort Control and C7089R1013 Wireless Outdoor Air Sensor |
| Used With | RedLINK™ enabled thermostats and accessories |
| Comments | Tri-Lingual Display (selectable for English, French or Spanish) |
| Electrical Rating | 18 to 30 Vac |
| Frequency | 60 Hz; 50 Hz |
| Stages | Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional |
| Electrical Connections | Screw terminals |
| Operating Humidity Range (% RH) | 0 to 90% RH, non-condensing |
| Supply Voltage | 18 to 30 Vac |
| Switch Positions (System) | HEAT-OFF-COOL-AUTO-EM.HEAT |
| Switch Positions (Fan) | AUTO-ON-CIRC |
| Operating Temperature Range | 32 F to 120 F 0 C to 48.9 C |
| Color | Arctic White |
| Programmability | 7-Day Multiple Day Programming or Non-Programmable |
| Power Method | Hardwired |
| Terminal Designations | R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1 U1, U2 U2 |
| Display Size | 8.06 sq in. |
| Changeover | Auto or Manual |
| Setting Temperature Range | Heat: 40 F to 90 F; Cool 50 F to 99F Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C |
| Humidification Setting Range | Cooling: 40 to 80% RH. Heating: 10 to 60% RH. |
| Dehumidification Setting Range | 40 to 80% RH. |
| External Sensors Available | N/A |
Additional Info
Additional Info
| Name | YTHX9321R5061 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | YTHX9321R5061 |
