C7012A1194

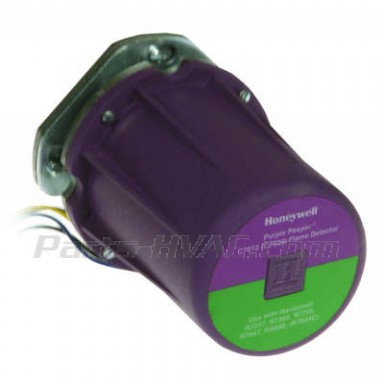

C7012A1194 Honeywell UV Ultraviolet, Purple Peeper Flame Detector - Purple Peeper.
C7012A1194 Honeywell Solid State Electric, Ultraviolet, Purple Peeper Flame Detector - Purple Peeper.
240 VAC Flame Sensor, 8 Ft Lead.
Replaces:
C7012A1020
C7012A1053
In Stock (1)
Availability: In stock
$847.49
Details
Details
C7012A1194 Honeywell
C7012A1194 Honeywell Solid state Ultraviolet, Purple Peeper electronic flame detectors for use with Honeywell Flame Safeguard controls and amplifiers. Senses ultraviolet radiation produced by combustion of gas, oil, coal or other fuels.
- Mounts horizontally, vertically or at any angle in between.
- Provides quick electrical hookup with threaded conduit fitting and color-coded leadwires.
- Two in parallel wiring to prevent nusance shutdowns.
- Meets NEMA 4 standards with viewing window rated to 20 psi.
C7012A1194 Honeywell Specifications:
| Application | Gas, Oil or Coal fired burners |
| Dimensions | 5 1/4 in. diameter (includes mounting flange) x 7 7/32 in. long 133 mm diameter (includes mounting flange) x 183 mm long |
| Used With |
Flame Amplifiers
R7247A, R7847A, R7257 R7247B, R7847B |
| Additional Info | Use with rectification flame signal amplifiers |
| Includes | Cast case and cover |
| Weight | 4.25 lb, 1.9 kg |
| Mounting | 3/4 in. NPT |
| Voltage | 240 Vac |
| Frequency | 50 Hz, 60 Hz |
| Electrical Connections | 4 NEC Class 1 Color-coded lead wires. |
| Power Consumption | 2.5 W |
| Approvals | Underwriters Laboratories Inc. , Listed: File No. MP268, Guide No. MCCZ
Canadian Standards Association, Certified: Master Report LR95329-1 Swiss RE, Acceptable Factory Mutual, Approved: Report No. 14740.01 |
| Type | Ultraviolet, Purple Peeper |
| Ambient Temperature | 25 F to 175 F, -4 C to +79 C |
| NEMA Rating | NEMA 4 |
| Lead Length | 96 in, 2438 mm |
Additional Info
Additional Info
| Name | C7012A1194 |
|---|---|
| Documentation | |
| Manufacturer | Honeywell |
| UPC: | C7012A1194 Honeywell |
| Accessories | No |
Honeywell C7012A1194 Tech SheetReviews
