C7012E1146
C7012E1146 Honeywell

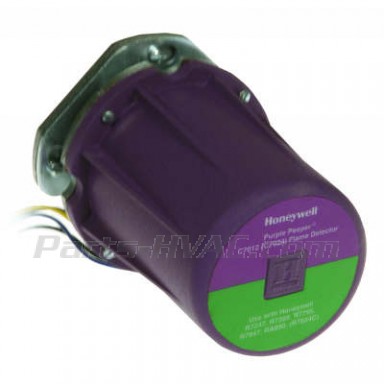

C7012E1146 Honeywell Solid State Electric, Ultraviolet, Purple Peeper Flame Detector.
Self Checking, 208VAC Flame Sensor, 3/4" NPT Mounting, 8 Ft Lead
Call For Availability
Availability: In stock
$5,948.63
Details
Details
C7012E1146 Honeywell
C7012E1146 Honeywell Solid state Ultraviolet, Purple Peeper electronic flame detectors for use with Honeywell Flame Safeguard controls and amplifiers. Senses ultraviolet radiation produced by combustion of gas, oil, coal or other fuels.
- Mounts horizontally, vertically or at any angle in between.
- Provides quick electrical hookup with threaded conduit fitting and color-coded leadwires.
- Two in parallel wiring to prevent nusance shutdowns.
- Meets NEMA 4 standards with viewing window rated to 20 psi.
- Self-checking
C7012E1146 Honeywell Specifications:
| Application | Gas, Oil or Coal fired burners |
| Dimensions | 5 1/4 in. diameter (includes mounting flange) x 7 7/32 in. long 133 mm diameter (includes mounting flange) x 183 mm long |
| Used With |
Flame Amplifiers
R7247C, R7847C |
| Additional Info | Dynamic self-checking flame detector |
| Includes | Cast case and cover, with Hot refractory tube |
| Weight | 4.25 lb, 1.9 kg |
| Mounting | 3/4 in. NPT |
| Voltage | 208 Vac |
| Frequency | 50 Hz, 60 Hz |
| Electrical Connections | 6 NEC Class 1 Color-coded lead wires. |
| Power Consumption | 7.0 W |
| Approvals | Underwriters Laboratories Inc. , Listed: File No. MP268, Guide No. MCCZ
Canadian Standards Association, Certified: Master Report LR95329-1 Swiss RE, Acceptable Factory Mutual, Approved: Report No. 14740.01 |
| Type | Ultraviolet, Purple Peeper |
| Ambient Temperature | -20 F to 175 F, -28 C to +79 C |
| NEMA Rating | NEMA 4 |
| Lead Length | 96 in, 2438 mm |
Additional Info
Additional Info
| Name | C7012E1146 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | C7012E1146 Honeywell |
| Accessories | No |
