C7027A1080
C7027A1080 Honeywell

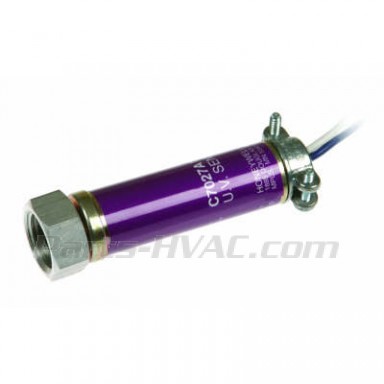

C7027A1080 Honeywell, Ultraviolet Mini Peeper Flame Detector.
0 F to 215 F, 8 Ft Lead.
Includes 136733 Heat Block and 390427B bushing.
In Stock (3)
Availability: In stock
$202.85
Details
Details
C7027A1080 Honeywell
C7027A1080 Honeywell UV minipeeper compact flame detector, for use with flame safeguard controls with ultraviolet amplifiers.
- Includes 136733 Heat Block and 390427B bushing.
- Mounts on a 1/2 in. sighting pipe by using an integral collar.
- Wires in parallel for difficult applications.
- Seals up to pressures of 5 psi ( 34.5 kPa ) when correctly installed.
- Compact size allows for blast tube mounting.
C7027A1080 Honeywell Specifications:
| Application | Gas, Oil or Coal fired burners |
| Dimensions | 1 1/16 in. diameter x 4 in. long 27 mm diameter x 102 mm long |
| Used With | Flame Amplifiers R7249A, R7849A, R7259, R7290, R7249B, R7849B, R7749B |
| Includes | 136733 Heat Block and 390427B bushing. |
| Mounting | Integral nut for 1/2 in. sighting pipe. |
| Electrical Connections | 2 NEC Class 1 lead wires |
| Vibration | 0.5 G max |
| Approvals | Underwriters Laboratories Inc. , File No. MP268, Guide No. MCCZ
Canadian Standards Association, Certified: Master Report LR95329-1 Swiss RE, Acceptable Factory Mutual, Approved: Report No. 24181.03 |
| Type | Ultraviolet, Minipeeper |
| Ambient Temperature | 0 F to 215 F, -18 C to +101 C |
| Lead Length | 96 in ( 8 ft ), 2438 mm |
Additional Info
Additional Info
| Name | C7027A1080 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | C7027A1080 Honeywell |
| Accessories | No |
