C7035A1080
C7035A1080 Honeywell

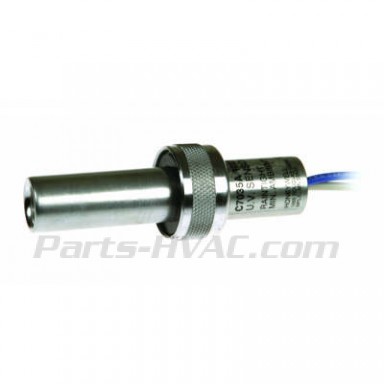

C7035A1080 Honeywell, Ultraviolet Minipeeper Compact Flame Detector.
Includes: 600F leads, 0 F to 250 F, 6 Ft Lead length.
In Stock (12)
Availability: In stock
$916.42
- Buy 5 for $300.05 each and save 68%
- Buy 10 for $289.50 each and save 69%
Details
Details
C7035A1080 Honeywell
C7035A1080 Honeywell UV minipeeper compact flame detector, for use with flame safeguard controls with ultraviolet amplifiers.
- 600° F rated leads
- Mounts on a 1 in. sighting pipe by using an integral collar.
- Protects the sensing tube with a shield.
- Wires in parallel for difficult applications.
- Meets NEMA 4 and NEMA 4X standards
- Seals up to pressures of 5 psi ( 34.5 kPa ) when correctly installed.
- Field-replaceable UV radiation sensing tube ( tube : 129464M ) .
C7035A1080 Honeywell Specifications:
| Application | Gas, Oil or Coal fired burners |
| Dimensions | 1 1/2 in. diameter x 4 1/8 in. long 38 mm diameter x 105 mm long |
| Used With | Flame Amplifiers R7249A, R7849A, R7259, R7290, R7249B, R7849B, R7749B |
| Weight | 6 oz, 0.17 kg |
| Mounting | Integral nut for 1 in. sighting pipe. |
| Tube Included | 129464M |
| Electrical Connections | 2 NEC Class 1 lead wires |
| Vibration | 0.5 G max |
| Approvals | Underwriters Laboratories Inc., File No. MP268, Guide No. MCCZ
Canadian Standards Association, Certified: Master Report LR95329-1 Swiss RE, Acceptable Factory Mutual, Approved: Report No. 24181.03 |
| Type | Ultraviolet, Minipeeper |
| Ambient Temperature | 0 F to 250 F, -18 C to +121 C |
| NEMA Rating | NEMA 3 and NEMA 4 |
| Lead Length | 72 in ( 6 ft ), 1829 mm |
Additional Info
Additional Info
| Name | C7035A1080 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | C7035A1080 Honeywell |
| Accessories | No |
