C7915A1010
C7915A1010 Honeywell

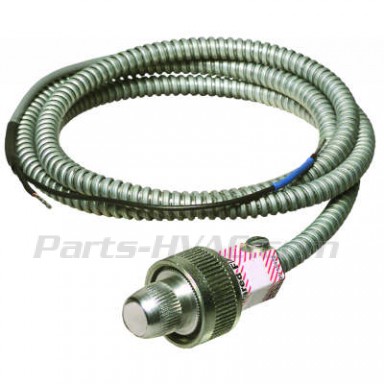

Flame Sensor, Infrared (Lead Sulfide), 30" Lead
REPLACES: C7015A1076
**** IF REPLACING A C7015A ALSO UPGRADE THE AMPLIFIER TO THE R7852 SERIES
In Stock (12)
Availability: In stock
$775.92
Details
Details
C7915A1010 Honeywell
105478D Honeywell Flame Sensor, Infrared (Lead Sulfide), 30" Lead
Replaces: C7015A1076 **If replacing C7015A, also upgrade the amplifier to the R7852 series.
Mounts on a standard 3/4" sighting pipe, and includes 50019469-001 Bushing with magnifying lens.
Uses photoconductive lead sulfide cells 32007255-001.
SPECIFICATIONS:
| Application | Used for combination or dual-fuel applications |
| Dimensions | 1 1/4" diameter x 2 1/4" long |
| Includes | Magnifying lens, 32007255-001 Cell |
| Compatible with | Flame Amplifiers: R7852 |
| Additional Info | Infrared (Lead Sulfide) Flame Detector |
| Mounting | 3/4" NPT |
| Approvals, Underwriters Laboratories Inc. | Listed: File No. MP268, Guide No. MCCZ |
| Electrical Connections | Two no.18 AWG wires |
| Approvals, Swiss RE | Acceptable |
| Approvals, Factory Mutual | Approved: Report No. 24181.03 |
| Type | Infrared (Lead Sulfide) |
| Ambient Temperature Range | -20F to 125F operating range, -18C to 52 operating range |
| Lead Length | 30 in, 762 mm |
Additional Info
Additional Info
| Name | C7915A1010 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | C7915A1010 Honeywell |
| Accessories | N/A |
