C7915A1028

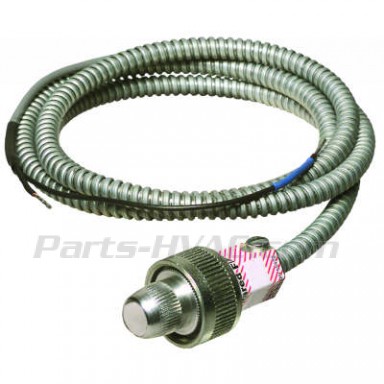

C7915A1028 Honeywell Flame Sensor
Infrared Lead Sulfide with mount, 48" Lead
REPLACES: C7015A1126 C7015A1142 C7015A1035 C7015A1118 C7015A 1126
*** IF REPLACING A C7015A ALSO UPGRADE THE AMPLIFIER TO THE R7852 SERIES
In Stock (36)
Availability: In stock
$844.19
Details
Details
C7915A1028 Honeywell
C7915A1028 Honeywell Flame Sensor, Infrared (Lead Sulfide) with mount, 48" Lead
Replaces: *C7015A1126 C7015A1142 C7015A1035 C7015A1118** IF REPLACING A C7015A ALSO UPGRADE THE AMPLIFIER TO THE R7852 SERIES.
Mounts on a standard 3/4" sighting pipe, and includes 50019469-001 Bushing with magnifying lens.
Uses photoconductive lead sulfide cells 32007255-001.
C7915A1028 SPECIFICATIONS:
| Application | Used for combination or dual-fuel applications |
| Dimensions | 1 1/4" diameter x 2 1/4" long |
| Includes | Magnifying lens, 32007255-001 Cell, Orifice, heat block, and reducer bushing |
| Compatible with | Flame Amplifiers: R7852 |
| Additional Info | Infrared (Lead Sulfide) Flame Detector |
| Mounting | 3/4" NPT |
| Approvals, Underwriters Laboratories Inc. | Listed: File No. MP268, Guide No. MCCZ |
| Electrical Connections | Two no.18 AWG wires |
| Approvals, Swiss RE | Acceptable |
| Approvals, Factory Mutual | Approved: Report No. 24181.03 |
| Type | Infrared (Lead Sulfide) |
| Ambient Temperature Range | -20F to 125F operating range, -18C to 52 operating range |
| Lead Length | 48 in, 1219 mm |
Buy the C7915A1028, in stock, available for $35 overnight shipping to the 48 states! Call for Details.
Additional Info
Additional Info
| Name | C7915A1028 |
|---|---|
| Documentation | C7915A1028 Flame Sensor |
| Manufacturer | Honeywell |
| UPC: | C7915A1028 Honeywell |
| Accessories | No |
