MLH01KPSCDJ1241

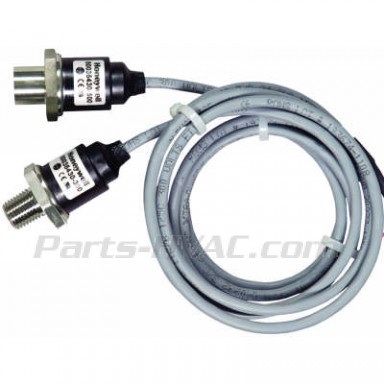

MLH01KPSCDJ1241 Honeywell Gauge Pressure Sensor 4-20mA 0-1000# 1/4in SAE Schrader, 9.5 to 30 Vdc
Can be used to Directly Replace: 50035430-01K
Obsolete - Out of Stock
Availability: In stock
$162.39
Details
Details
Overview
The MLH Series is a two-wire 4-20mA gauge pressure sensor. This digitally compensated sensor offers an unparalleled value/performance combination, making it an ideal solution for demanding applications. Available in pressure ranges up to 1000 psi.
Features
- Available in 50, 150, 300, 500 and 1000 psi.
- All metal wetted parts for use in wide variety of fluid applications.
- Suitable for use with freon and ammonia based cooling systems.
- No internal elastomeric seals mean no o-ring compatibility issues.
- Less than 2 ms response time provides accurate, high speed measurement.
- Select models available with 1/4-in. SAE female Schrader connection with valve depressor.
Product Specifications
| Materials | Housing--Black plastic, A model AS-4133 HS-PPA; In contact with media--SST 304L and Haynes 214 alloy |
| Electrical Connections | Cable (3 meter) |
| Voltage | 9.5Vdc to 30Vdc |
| Operating Temperature Range (F) | -40 F to +257 F |
| Operating Temperature Range (C) | -40 C to 125 C |
| Approvals, CE | CE |
| Output | 4-20 mA, 2-wire |
| Connection Size (in.) | 1/4" SAE female Schrader |
| Pressure Range (psi) | 1000 psig |
| Accuracy | ±0.25% of full scale span |
| Proof pressure | 2X Working Pressure Range |
| Burst pressure | 10X Working Pressure Range |
Additional Info
Additional Info
| Name | MLH01KPSCDJ1241 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | MLH01KPSCDJ1241 |
