MLH050PSCDJ1235

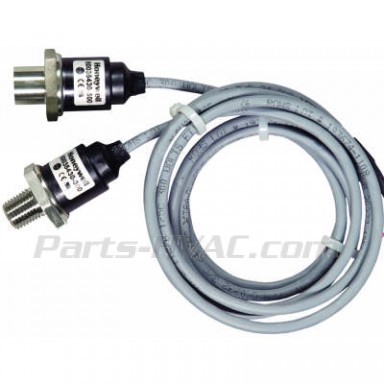

MLH050PSCDJ1235 Honeywell 4-20mA 0-50# 1/4in NPT Part NO: MLH050PSCDJ1235
Can be used to Directly Replace: 50035430-050
Out of Stock - OBSOLETE
Availability: In stock
$191.04
Details
Details
Overview
The MLH Series is a two-wire 4-20mA gauge pressure sensor. This digitally compensated sensor offers an unparalleled value/performance combination, making it an ideal solution for demanding applications. Available in pressure ranges up to 1000 psi.
Features
- Available in 50, 150, 300, 500 and 1000 psi.
- All metal wetted parts for use in wide variety of fluid applications.
- Suitable for use with freon and ammonia based cooling systems.
- No internal elastomeric seals mean no o-ring compatibility issues.
- Less than 2 ms response time provides accurate, high speed measurement.
- Select models available with 1/4-in. SAE female Schrader connection with valve depressor.
Product Specifications
| Materials | Housing--Black plastic, A model AS-4133 HS-PPA; In contact with media--SST 304L and Haynes 214 alloy |
| Electrical Connections | Cable (3 meter) |
| Voltage | 9.5Vdc to 30Vdc |
| Operating Temperature Range (F) | -40° C to 125° C |
| Operating Temperature Range (C) | -40° F to 257° F |
| Approvals, CE | CE |
| Output | 4-20 mA, 2-wire |
| Connection Size (in.) | 1/4"-18 NPT |
| Pressure Range (psi) | 50 psig |
| Accuracy | ±0.50% of full scale span |
| Proof pressure | 3X Working Pressure Range |
| Burst pressure | 10X Working Pressure Range |
Additional Info
Additional Info
| Name | MLH050PSCDJ1235 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | MLH050PSCDJ1235 Honeywell |
