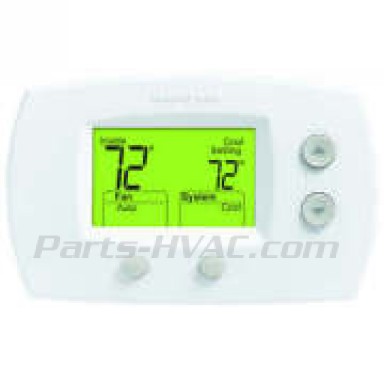

TH5220D1003
TH5220D1003 Honeywell - Non-Programmable FocusPRO digital thermostat; Up to 2heat/2cool; standard display
REPLACES:
HH07AT172 L39-723 P2721886
Q674E1023 Q674E1403 Q674F1014
Q674F1105 Q674F1154 Q674F1212
T841A1738 T874G1170 TH5220D1011
TH5220D1151 RS4220
(T8411R1028 & Cover Plate 50002883-001)
Call For Availability
Availability: In stock
$117.04
- Buy 5 for $71.05 each and save 40%
- Buy 10 for $68.63 each and save 42%
Details
Details
TH5220D1003 Honeywell
The TH5220D1003 Honeywell FocusPRO® 5000 digital thermostat offers the perfect blend of features, performance, energy savings and value. With the largest backlit screen in its class, the FocusPRO 5000 prominently displays both room and set temperature.
| Application | Up to 2 Heat/2 Cool Conventional Systems; Up to 2 Heat/1 Cool Heat Pumps |
| Dimensions | 3 9/16 in. High X 5 13/16 in. Wide X 1 1/2 in. Deep 91 mm High X 147 mm Wide X 38 mm Deep |
| Comments | Standard display size 3.75 sq. in. |
| Mounting | Horizontal |
| Electrical Rating | 20 to 30 Vac or 750 mV |
| Frequency | 50 Hz; 60 Hz |
| Stages | Up to 2 Heat/2 Cool |
| Operating Humidity Range (% RH) | 5 to 90% RH, non-condensing |
| Switch Positions | HEAT-OFF-COOL-AUTO-EM.HEAT AUTO-ON |
| Sensor Element | Thermistor |
| Accuracy | ±1 F ± 0.5 C |
| Color | Premier White® |
| Switch Type | Relay |
| Power Method | Dual Powered: Battery or Hardwire |
| Terminal Designations | R, RC, C, W-O/B, G, Y, W2-AUX/E, Y2-L |
| Display Size | N/A |
| Changeover | Auto/Manual Selectable |
| Setting Temperature Range | Heat: 40 F to 90 F; Cool: 50 F to 99 F Heat: 4.5 C to 32 C; Cool: 10 C to 37 C |
| Cycles per Hour | Heating 1-12 CPH; Cooling 1-6 CPH |
| Cool Current | Y = 0.02 A to 1.0 A running; Y2 = 0.02 A to 1.0 A running |
| Heat Current | W = 0.02 A to 1.0 A running; W2 (AUX) = 0.02 A to 0.5 A running; E = 0.02 A to 1.0 A running |
| Fan Current | 0.02 A to 0.5 A running |
Additional Info
Additional Info
| Name | TH5220D1003 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | TH5220D1003 Honeywell |
