101233

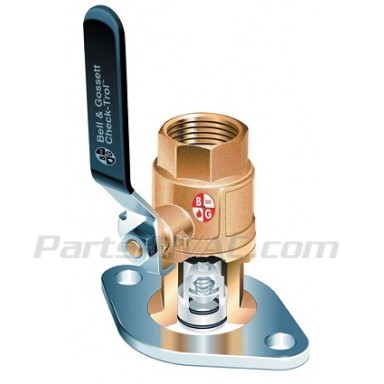

101233 Bell Gossett - Check-Trol Isolation Flow Control Flange **OBSOLETE - New Replacement: 101233LF - LEAD FREE
101233LF Bell Gossett - LEAD FREE
Model CTF-1-1/4, 1-1/4" NPT x FLANGE, Shiping Weight - 6.0 lbs
Sold in a pair: The Check-Trol flanges are packed with an isolation flange of the same size to create a pair. Capscrews and nuts are included.
For use with: NRF/NBF/SSF Wet Rotors Series L-30, PL-36, PL-55, Series 100, PR
Call For Availability
Availability: Out of stock
$0.00
Details
Details
101233 Bell & Gossett
101233 Bell Gossett Check-Trol Isolation Flow Control Flange **OBSOLETE - New Replacement: 101233LF - LEAD FREE
Model CTF-1-1/4, 1-1/4" NPT x FLANGE
For use with: Series PLl-30, PL-36, PL-55 Series 100, PR, and LR NRF/NBF/SSF, etc.
| A | B | B1** | C | D |
| 1-1/4" NPT | 4-3/4" (120) | 2-3/16" (81) | 2-5/8" (67) | 5" (127) |
Dimensions and weights are approximate and subject to change. Contact factory for certified dimensions. Check-Trol flange is sold with an isolation flange as a pair.
**B1 Dimensions is overall lenght of isolation flange. The part numbers and shipping weights are for one Chekc-Trol flange and one isolation flange. capscrews and nuts.
| Maximum Working Pressure | 150 psi (10 bar) |
| Maximum Operating temperature | 200F (93C) |
| Valve Body | Brass |
| Flange | Chrome Plated Steel |
| Ball | Chrome Plated Brass |
| Packing | Teflon |
| Seat Ring | Teflon |
| Stem | Brass |
| Spring Check | Nitrile, Acetal, Stainless Steel |

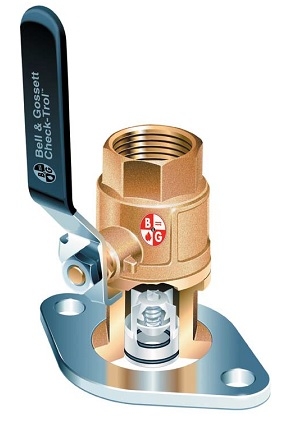

The 101233 Bell Gossett Check-Trol Isolation Flow Control Flange is a combination isolation valve, flow control valve, and companion flange for circulators. The full port ball valve allows the circulator to be removed from the system without draining the system. The intermal Spring check prevents gravity circulation. Free floating companion flange makes pump installation a snap.
**The Check-Trol flanges are packaged with an isolation flange ofthe same size to create a pair. Capscrews and nuts are included.
Additional Info
Additional Info
| Name | 101233 |
|---|---|
| Documentation | N/A |
| Manufacturer | Bell Gossett |
| UPC: | 101233 |
