AQ25744B

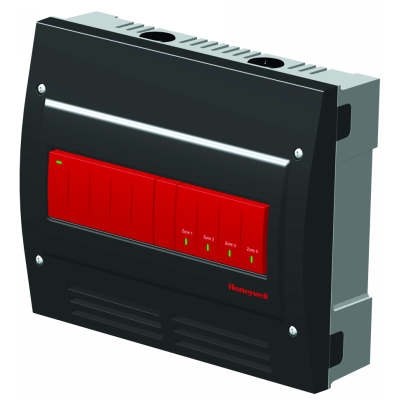

AQ25744B Honeywell
AQ25744B Honeywell Hydronic Heating Aquatrol Zoning Control used for hydronic zoning systems with end switches.
Call For Availability
Availability: In stock
$404.75
Details
Details
AQ25744B Honeywell
AQ25744B Honeywell Hydronic Heating Aquatrol Zoning Control used for hydronic zoning systems with end switches.
AQ25744B Honeywell
| Application | Zoning control for hydronic zoning system |
| Dimensions | 9 1/2 in wide x 8 in. high x 3 3/8 in. deep 24 cm wide x 20.3 cm high x 8.5 cm deep |
| Weight | 3.9 lbs, 1.8kg |
| Approvals | CSA C/US Certified to CSA and UL Standards, File No. LR76030 |
| Thermostat Compatibility | AQ1000 Series 2-wire communicating thermostats and most digital thermostats |
| User Interface | DIP Switches |
| Amount of Zones | 4 |
| Zoning Devices Controlled | Zone valves with end switches (24 Vac) |
| R-C Input (on Control and Zoning Modules) |
24 Vac Class II (input on Control and Zoning Modules) |
| B-B Communication Bus Terminals | Low voltage, Class II, 2-wire polarity-insensitive, digital communicating link to other Control or Zoning modules. |
| Zone Module Thermostat Input | Low voltage, Class II, 2-wire polarity-insensitive, digital communicating with power link to AQ1000 series thermostat. |
| Zone Output Contact Rating | 120 Vac/250 Vac, 0.5A, 12VA |
| Electrical Connections | Wire-clamp screw terminals, Maximum 2 x 14 AWG each on line voltage terminals |
| Operating Humidity Range (% RH) | 5 to 90% RH, non-condensing |
| Replacement Parts | AQ10X38 24 Vac 38 VA transformer, AQ15740B 4-zone valve with end switch expansion module |
| Temperature Ratings | Panel--0 C to 55 C Panel--32 F to 130 F |
Additional Info
Additional Info
| Name | AQ25744B |
|---|---|
| Manufacturer | Honeywell |
| UPC: | AQ25744B Honeywell |
