C7041J2007

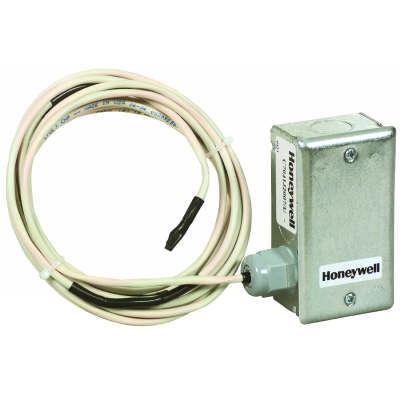

20K 24ft Flex Averaging Sensor
In-Stock (9)
Availability: In stock
$134.81
Details
Details
Overview
The C7041 Electronic Temperature Sensors are 20K ohm NTC sensors designed to be used with electronic controllers in domestic or commercial heating and cooling systems.
Features
- The C7041 series of electronic temperature sensors are designed for use with the Excel 10, Excel 15, or any controller requiring a 20K ohm NTC non-linearized sensor input.
- Various models are available for sensing duct air temperature, averaging air temperature, water temperature, outdoor air temperature, or water pipe temperature.
- All devices consist of a temperature sensitive element and leadwires enclosed for protection from physical damage.
- Sensor element enclosures are made of various lengths and configurations for the specific applications.
- All devices have a wiring box housing to enclose the field wiring connections. C7041F outdoor sensor design, made of aluminum and stainless steel, is waterproof, and includes a sunshield.
Product Specifications
| Application | Duct discharge air (averaging) |
| Dimensions (in.) | 4 3/16 in. high x 2 5/16 in. wide x 1 11/16 in. deep |
| Dimensions (mm) | 107 mm high x 59 mm wide x 43 mm deep |
| Used With | Excel 10, 50, 80, 100, 500 |
| Sensor | 20 K ohm NTC @ 77 F |
| Operating Temperature Range (F) | -40 F to +250 F |
| Operating Temperature Range (C) | -40 C to +121 C |
| Shipping and Storage Temperature Range (F) | -30 F to +160 F |
| Shipping and Storage Temperature Range (C) | -34 C to +71 C |
| Insertion Length (ft) | 12 ft. |
| Insertion Length (m) | 3.66 m |
| Ambient Temperature Range (F) | 302 F Maximum |
| Ambient Temperature Range (C) | 150 C Maximum |
Additional Info
Additional Info
| Name | C7041J2007 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | C7041J2007 Honeywell |
