C7043A1098

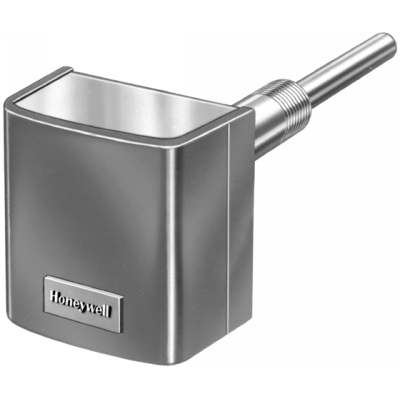

C7043A1098 Honeywell IMMERSION WELL/ CASE 6in lead wires
OBSOLETE
Call for Cross Reference Information
Call For Cross Reference Information
Availability: In stock
$0.00
Details
Details
Overview
Temperature sensors are electronic sensors for use with chiller controls.
Features
- Leadwires and wire nuts provided for wiring convenience.
- Immersion well assembly provided for mounting in water supply.
- Thermistor element provides accurate sensing of system water temperature changes.
Product Specifications
| Application | Chilled water |
| Dimensions (in.) | 2 3/4 in. high x 2 3/4 wide x 11 1/4 in. deep |
| Dimensions (mm) | 70 mm high x 70 mm wide x 286 mm deep |
| Includes | 6 in. leadwires |
| Used With | W901A |
| Sensor | Enclosure without sensor |
| Setpoint Temperature Range (C) | 2 C to 13 C |
| Setpoint Temperature Range (F) | 35 F to 55 F |
| Operating Temperature Range (F) | -40 F to +240 F |
| Operating Temperature Range (C) | -40 C to +116 C |
| Insertion Length (in.) | 6 in., includes 3 inch insulation depth |
| Insertion Length (mm) | 152 mm, includes 76 mm insulation depth |
| Ambient Temperature Range (F) | 240 F Maximum |
| Ambient Temperature Range (C) | 116 C Maximum |
Additional Info
Additional Info
| Name | C7043A1098 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | C7043A1098 Honeywell |
