C7130B1009
WALL MOUNT TEMPERATURE SENSOR -40/100F 11
In Stock (4)
Availability: In stock
$81.89
Details
Details
Overview

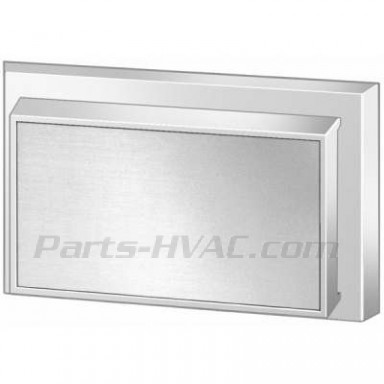

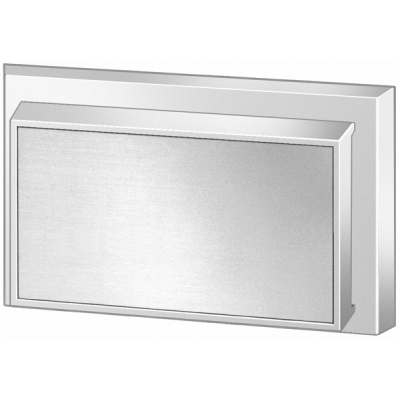

The C7130A,B Wall-Mount Air Temperature Sensors provide the input required by the R7380J,L, W7100, W7600, W7620, and Excel 500 Control Systems to sense air temperature in indoor spaces.
Features
- C7130A Wall-mount Temperature Sensor:
- Intended for use as an indoor air sensor with the R7380J,L Indicating Controller, the W7100 Discharge Controller, the W7600 Direct Digital Controller, and the W7620 Direct Digital Controller.
- C7130B Wall-mount Temperature Sensor:
- Intended for use as an indoor air sensor with the Excel 500 Controller.
Product Specifications
| Application | Intended for monitoring or controlling temperature in conjunction with an electronic control |
| Dimensions (in.) | 2 13/16 in. high x 4 5/8 in. wide |
| Dimensions (mm) | 71.4mm high x 118 mm wide |
| Used With | Excel 500, T775 Series 2000 |
| Mounting | Wall mount |
| Sensor | PT1000, 1097 ohms @ 77 F PTC |
| Operating Temperature Range (F) | -40 F to +100 F |
| Operating Temperature Range (C) | -40 C to +38 C |
| Shipping and Storage Temperature Range (F) | -40 F to +150 F |
| Shipping and Storage Temperature Range (C) | -40 C to +65 C |
| Ambient Temperature Range (F) | 150 F Maximum |
| Ambient Temperature Range (C) | 66 C Maximum |
Additional Info
Additional Info
| Name | C7130B1009 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | C7130B1009 Honeywell |
