C7232A1008

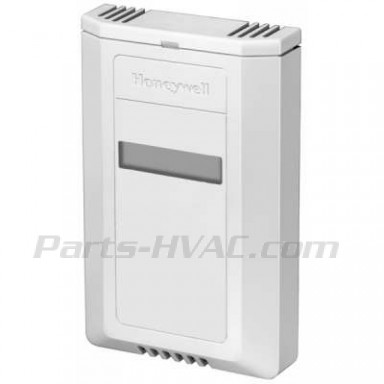

C7232A1008 Honeywell CO2 SENSOR with Wall Mount Display, 1 Relay Output and Stands Alone.
Can be used to directly replace: C7242A1014
OBSOLETE

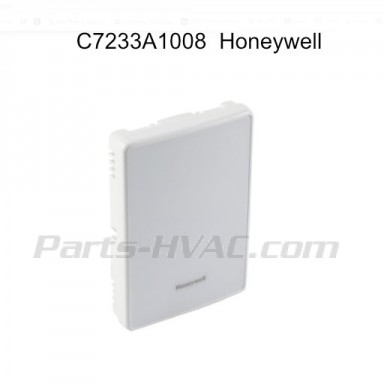

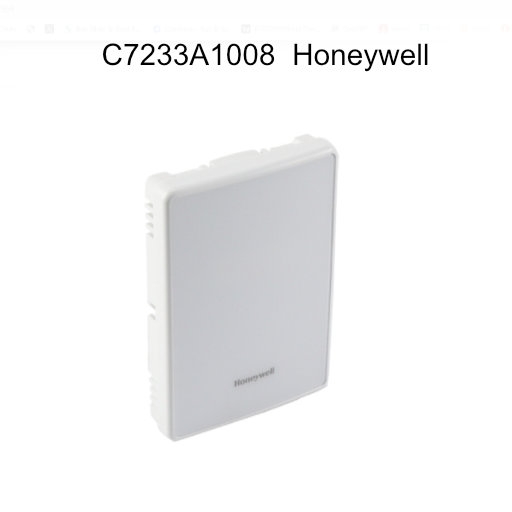

Direct Replacement: C7233A1008
In stock
- SKU
- C7232A1008
- Availability
- Replacement - In Stock (65)
$303.40
Details
C7232A1008 Honeywell
Stand-alone (CO2) Carbon Dioxide Sensors and Controllers are used for determining necessary ventilation with HVAC controllers and to manage the amount of fresh outdoor air supplied to maintain levels of acceptable CO2 in a space.
Specifications
| Application | Carbon Dioxide Sensor |
| Dimensions (in.) | 5 1/16 in. high x 3 11/16 in. wide x 2 in. deep |
| Dimensions (mm) | 128 mm high x 80 mm wide x 25 mm deep |
| Includes | Honeywell Logo |
| Mounting | Wall mount |
| Frequency | 50 Hz; 60 Hz |
| Electrical Connections | Six leadwires, 20-gauge, 8 in. long |
| Sensor | Non-dispersive Infrared (NDIR) |
| Contact Ratings | 1 A @ 50 Vac/24 Vdc |
| Voltage | 24 Vac/dc ±20%, |
| Operating Temperature Range (F) | 32 F to 122 F |
| Operating Temperature Range (C) | 0 C to 50 C |
| Relay Outputs | One: Normally Open SPST |
| Timing | Response--1 minute |
| Accuracy | 5% full scale |
| Display | Yes |
| Sensor Range | 0 to 2000 ppm, adjustable |
| Analog Current Output | 0/2 - 10 Vdc or 0/4 - 20 mA selectable, with/ one relay output |
Additional Info
| Manufacturer | Honeywell |
|---|---|
| UPC: | C7232A1008 Honeywell |
| Sensor Type | CO2 |
