C7232A1016
C7232A1016 Honeywell
UPC: 85267203852

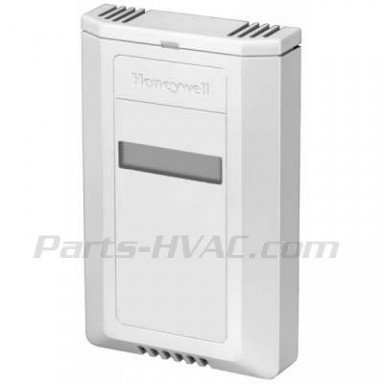

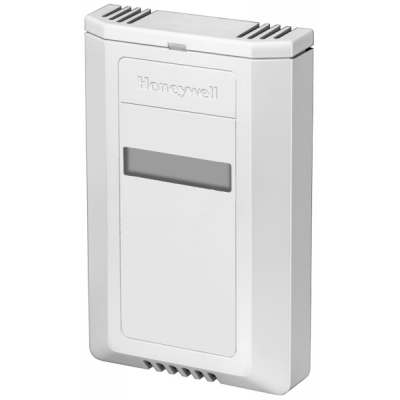

CARBON DIOXIDE SENSOR, WALL MOUNT, NO DISPLAY
Call For Replacement Info
Availability: In stock
$292.49
Details
Details
C7232A1016 Honeywell
C7232A1016 Honeywell carbon dioxide sensor is sold with wall mount and no display.
| Application | Carbon Dioxide Sensor |
| Dimensions (in.) | 5 1/16 in. high x 3 5/32 in. wide x 2 in. deep |
| Dimensions (mm) | 128 mm high x 80 mm wide x 25 mm deep |
| Includes | Honeywell Logo |
| Mounting | Wall Mount |
| Frequency | 50 Hz; 60 Hz |
| Electrical Connections | Six leadwires, 20-gauge, 8 in. long |
| Sensor | Non-dispersive Infrared (NDIR) |
| Contact Ratings | 1 A @ 50 Vac/24 Vdc |
| Voltage | 24 Vac/dc ±20%, |
| Operating Temperature Range (F) | 32 F to 122 F |
| Operating Temperature Range (C) | 0 C to 50 C |
| Relay Outputs | One: Normally Open SPST |
| Timing | Response--1 minute |
| Accuracy | 5% full scale |
| Display | None |
| Sensor Range | 0 to 2000 ppm, adjustable |
| Analog Current Output | 0/2 - 10 Vdc or 0/4 - 20 mA selectable, w/ one relay output |
Additional Info
Additional Info
| Name | C7232A1016 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | C7232A1016 Honeywell |
| Sensor Type | CO2 |
