C7232B1030

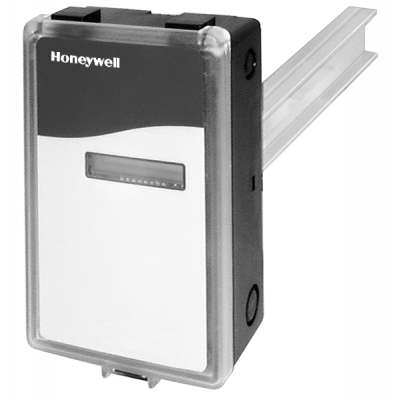

C7232B1030 Honeywell
Honeywell Carbon Dioxide Sensor with duct mount and no display, no Honeywell logo, 24Vac, 32F to 122F
In Stock (6)
Availability: In stock
$532.76
- Buy 5 for $298.50 each and save 44%
- Buy 10 for $285.00 each and save 47%
Details
Details
C7232B1030 Honeywell
C7232B1030 Honeywell Carbon Dioxide Sensor comes with duct mount and no display.
| Application | Carbon Dioxide Sensor |
| Dimensions (in.) |
|
| Dimensions (mm) | 142 mm high x 84 mm wide x 87 mm deep x plus 203 mm sensing tube |
| Includes | No Honeywell Logo |
| Mounting | Duct mount |
| Frequency | 50 Hz; 60 Hz |
| Electrical Connections | Six leadwires, 20-gauge, 6 in. long |
| Sensor | Non-dispersive Infrared (NDIR) |
| Contact Ratings | 1 A @ 50 Vac/24 Vdc |
| Voltage | 24 Vac/dc ±20%, |
| Operating Temperature Range (F) | 32 F to 122 F |
| Operating Temperature Range (C) | 0 C to 50 C |
| Relay Outputs | One: Normally Open SPST |
| Timing | Response--1 minute |
| Accuracy | 5% full scale |
| Display | None |
| Sensor Range | 0 to 2000 ppm, adjustable |
| Analog Current Output | 0/2 - 10 Vdc or 0/4 - 20 mA selectable, w/ one relay output |
Additional Info
Additional Info
| Name | C7232B1030 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | C7232B1030 Honeywell |
| Sensor Type | CO2 |
