C7600C2001

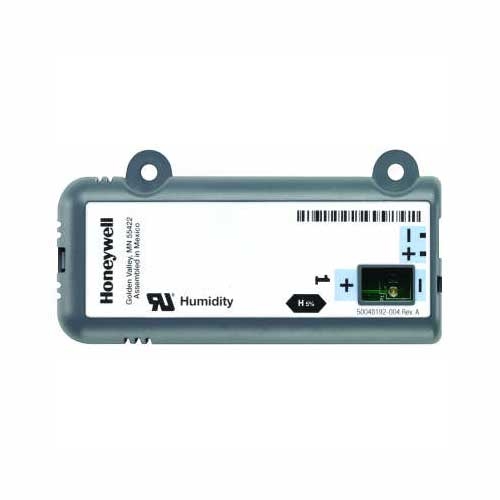

C7600C2001 Honeywell
Humidity Sensor, Relative Humidity in air 5%RH, 4-20mA output
In Stock (99)
Availability: In stock
$168.62
Details
Details
C7600C2001 Honeywell
Digital humidity sensor for 5% over range of 10-90% RH
Product Specifications
| Application | Solid State Humidity Sensor for Solid state humidity sensor sense relative humidity in air |
| Dimensions (in.) | 4.25 in high x 2.17 in wide x .81 in deep |
| Dimensions (mm) | 108 mm high by 55mm wide x 20.5 mm deep |
| Used With | W7600 or controller requiring 4-20 mA reverse acting input |
| Mounting | Mounted in any position where it is exposed to freely circulating air |
| Approvals, Underwriters Laboratories Inc. | Component Recognized |
| Electrical Connections | Two 1/4 in. quick-connect terminals |
| Operating Humidity Range (% RH) | 10 to 90% RH |
| Sensor | 4-20 mA output |
| Operating Temperature Range (F) | -40ºF to 150ºF |
| Operating Temperature Range (C) | -40ºC to 65.6ºC |
| Color | Gray |
| Ambient Temperature Range (F) | 150 F Maximum |
| Ambient Temperature Range (C) | 66 C Maximum |
Additional Info
Additional Info
| Name | C7600C2001 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | C7600C2001 Honeywell |
