C7772A1004
20kOhm Flush Mt Temp Snsr NTC
In Stock (18)
Availability: In stock
$39.10
Details
Details
Overview

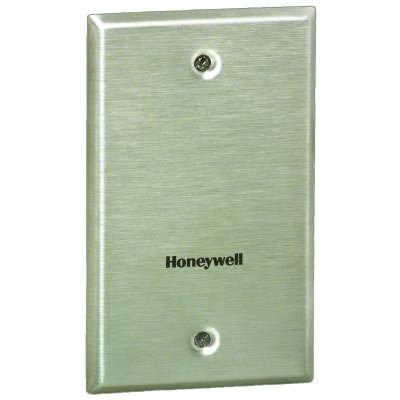

C7772 Temperature Sensors are designed for the Excel 5000 family and other Honeywell controllers. They provide a resistive output signal and are well suited for low profile wall mounted applications.
Features
- Low profile when mounted on industry standard utility conduit box.
- Rugged, brushed stainless steel wallplate.
- Integral foam pad isolates wallplate sensor from conduit box.
- Insulated screw terminals ensure reliable field wiring connection.
- Models available with a variety of resistive temperature sensor elements.
Product Specifications
| Application | Low profile wall mounted where durability and tamper proof construction is desired |
| Dimensions (in.) | 4 1/2 in. high x 2 3/4 in. wide |
| Dimensions (mm) | 114 mm high x 70 mm wide |
| Used With | Excel 5000 family |
| Mounting | Wall mount |
| Operating Humidity Range (% RH) | 5 to 95% RH, non-condensing |
| Sensor | 20 K ohm NTC non-linear |
| Operating Temperature Range (F) | 45 F to 99 Fr |
| Operating Temperature Range (C) | 7 C to 37 C |
| Shipping and Storage Temperature Range (F) | -40 F to +150 F |
| Shipping and Storage Temperature Range (C) | -40 C to +65 C |
Additional Info
Additional Info
| Name | C7772A1004 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | C7772A1004 Honeywell |
