CCC-1001

Be the first to review this product

CCC-1001 KMC RECEIVER CONTROLLER, Single / Dual Input, low volume.

*External restrictor HFO-0022 (Restrictor T, 28.8 scim) might be required if replacing a receiver/controller using internal restrictors. All transmitters used withthe CCC-1001 require an external restrictor.

In Stock

Regular Price: $342.56

Discount Price $263.51

Print this Page

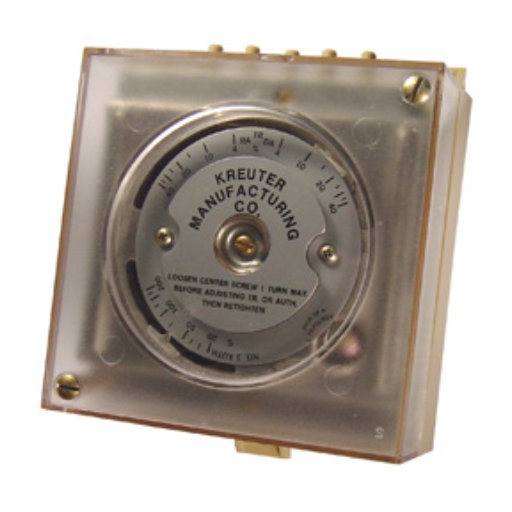

CCC-1001 KMC Zoom

Details

CCC-1001 KMC / Krueter RECEIVER CONTROLLER, Single / Dual Input, low volume.

The KMC CCC-1001 Receiver Controller is a pneumatic proportional controller designed for use withpneumatic transmitters, or 3 to 15 psi (21 to 103 kPa) pneumatic devices, to control valves, and actuatorsin HVAC system.

KMC CCC01001 Features:

  • Dual inputs
  • Remote setpoint adjustment
  • Field selectable, proportional, direct or reverse action
  • Adjustable throttling range and authority
  • Low limit applications
CC-1001 KMC Specifications:
Pressure Supply 20 psig (138 kPA)
Max. 30 psig all ports (207 kPA)
Air Consumption 43.2 scim max. (11.8 mL/s)
Output Capacity 43.2 scim (11.8 mL/s)
Setpoint 1.75 psi (12 kPA)/ rev. adjust-able
Throttling Range 4 to 40%
Action Direct or Reverse
Authority 20 to 200% of primary input
Remote Setpoint +/–10% of primary input span, direct acting
Weight 21 oz. (595 grams)
Material
     Base Flame retardant plastic
     Levers, Flexures Stainless steel
     Diaphragms Neoprene
     Finish Beige with clear cover
Temperature Limits
     Operating 40 to 120° F (4 to 49° C)
     Shipping –40 to 140° F (–40 to 60° C)
Input
     Port 1 Primary signal 3 to15 psig (21 to 103 kPA)
     Port 2 Remote setpoint adjustment 3 to 15 psig
     Port 3 Secondary signal 3 to 15 psig
Output Port “B” branch
Connections 3/16" (5 mm) nipples for 1/4" (6mm) OD polyethylene tubing

Additional Information

Name CCC-1001
Short Description

CCC-1001 KMC RECEIVER CONTROLLER, Single / Dual Input, low volume.

*External restrictor HFO-0022 (Restrictor T, 28.8 scim) might be required if replacing a receiver/controller using internal restrictors. All transmitters used withthe CCC-1001 require an external restrictor.

Manufacturer KMC
UPC: CCC-1001 KMC
Price $342.56
Discount Price $263.51
