HVFD3D3D0050G100C Honeywell VFD

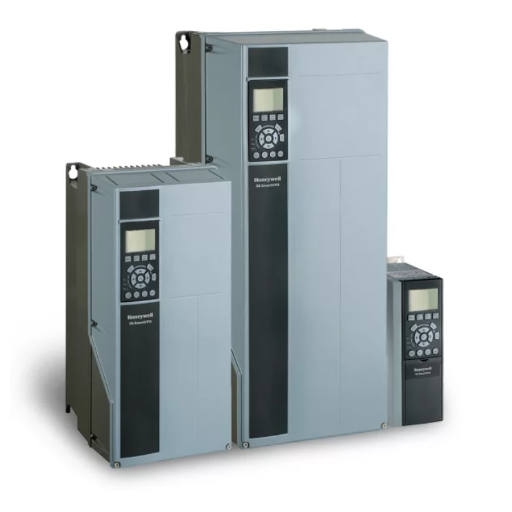

HVFD3D3D0050G100C Honeywell 3G SmartVFD Variable Frequency Drive

The Honeywell HVFD3D3D0050G100C 3G SmartVFD is a 5 HP variable frequency drive designed for controlling three-phase motors in commercial HVAC applications. Operating at 600 VAC, this drive provides precise motor speed control to help improve HVAC system efficiency, reduce energy consumption, and provide reliable operation for fans, pumps, compressors, and other motor-driven equipment.

The Honeywell 3G SmartVFD series is specifically engineered for HVAC applications and can operate three-phase induction motors, permanent magnet motors, and high-efficiency synchronous reluctance motors. Built-in HVAC functions and communication capabilities make the SmartVFD suitable for integration with modern building automation and control systems.

Product Features

• Manufacturer: Honeywell
• Manufacturer Part Number: HVFD3D3D0050G100C
• Series: Honeywell 3G SmartVFD
• Product Type: Variable Frequency Drive (VFD)
• Motor Rating: 5 HP
• Power Rating: Approximately 4 kW
• Input Voltage: 600 VAC
• Phase: Three Phase
• Enclosure Rating: NEMA 1
• Operator Interface: Keypad Included
• Application: HVAC Fans, Pumps, Compressors, and Motor Control

Designed for HVAC Applications

The Honeywell 3G SmartVFD provides variable speed control that allows HVAC motors to operate according to system demand rather than continuously operating at full speed. This can help reduce energy consumption, lower mechanical stress on motors and connected equipment, and improve overall system performance.

The drive includes HVAC-oriented programming and built-in control functions designed for pumps, fans, and compressors. Honeywell also incorporates startup and motor adaptation features that simplify commissioning and help optimize motor performance.

Building Automation Communication

The 3G SmartVFD platform supports embedded building automation communication protocols, including BACnet and Modbus, allowing the drive to communicate with compatible building management and HVAC control systems. This provides greater flexibility for monitoring, control, and energy management applications.

NEMA 1 Enclosure

The NEMA 1 enclosure is intended for indoor installations where the drive is protected from weather, moisture, and other environmental exposure. Always confirm that the installation location and enclosure rating meet the requirements of the application.

Specifications

Honeywell 3G SmartVFD Data Sheet

View Honeywell 3G SmartVFD Data Sheet – 31-00558 for HVFD3D3D0050G100C

Important: Always verify voltage, horsepower, motor specifications, enclosure requirements, and application compatibility before ordering or installing a variable frequency drive.
