HVFDCD1B0020F00

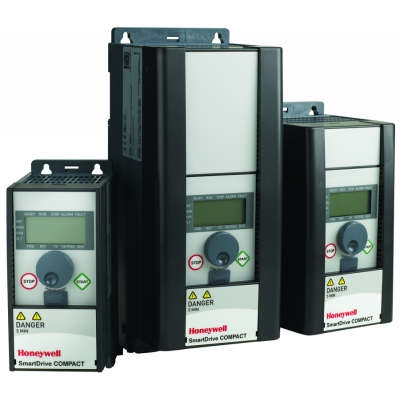

HVFDCD1B0020F00 Honeywell Compact VFD - Variable Frequency Drive 208/230V 2 HP Without FILTER
Call For Price and Availability
Availability: In stock
$0.00
Details
Details
Overview
HVFDCD1B0020F00 Honeywell SmartVFD COMPACT is among the smallest, most streamlined energy saving variable frequency drives (VFD). An intuitive user interface lets you select the capabilities to customize the drive features to the application, eliminating waste.
Features
- Easy commissioning – Intuitive user interface – PID controller included, standard – Program without the need for a main power supply
- Easy installation – The most streamlined VFDs on the market – DIN rail or screw mounting – Side-by-side mounting
- Easy communication – Up to seven programming control inputs – Up to three programmable control outputs – Several fieldbus options available.
Product Specifications
| Dimensions (in.) | 7.7 x 3.5 x 4 |
| Dimensions (mm) | 195 x 90 x 102 |
| Weight (lb) | 1.5 lb |
| Weight (kg) | 0.68 kg |
| Frequency | 0 Hz to 320 Hz |
| Voltage | 230v 1/3 |
| Operating Temperature Range (F) | 14 to 122 F |
| Operating Temperature Range (C) | -10 C to 50 C |
| Enclosure | Open Chassis |
| Relay Outputs | Max. switching load: 250Vac/2A or 250Vdc/0,4A |
| Horsepower | 2 HP |
| Current Ratings | 7.0 A |
| Analog Current Output | 0 (4) - 20 mA, max 500 ohm |
| Bypass | Drive alone |
| Drive Family | SmartVFD COMPACT |
| Type of RFI Filter | No filter |
| Continuous Output Current | overload 1.5 x High overload current (1min/10min); overload 1.1 x Low overload current (1min/10min) |
| Starting Torque | Depends on the Motor |
| Peak Current | 2 x IN, 2 secs in every 20 sec period |
| Acceleration time | 0.1 - 3000 sec |
| Deceleration time | .1 - 3000 sec |
| Analog Voltage Input | 0 - 10 Vdc , 200K ohm |
| Analog Current Input | 0 (4) - 20 mA, 250 ohm differential |
| Digital Output | Open collector, max. load 48V/50mA |
| Reference Output Voltage | Maximum Load 10mA |
| Auxiliary Voltage | ± 20%, max. load 50 mA |
| Frame Type | 2 |
| Software | Full |
Additional Info
Additional Info
| Name | HVFDCD1B0020F00 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | No |
