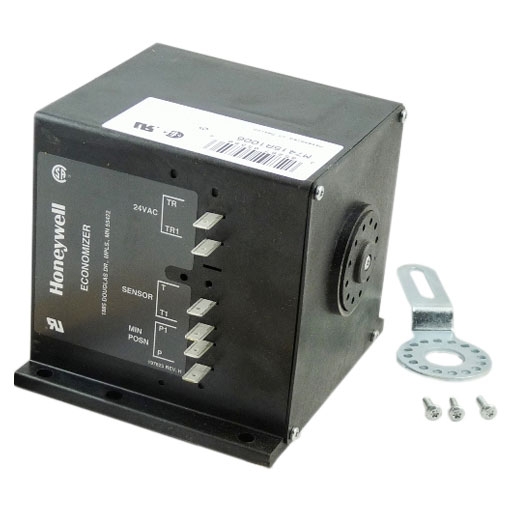

M7415A1006
M7415A1006 - Honeywell M7415A1006 Economizer Motor, 24V Spring Return Damper Actuators provide 2-pos, 3-pos, floating or modulating control of economizer systems, ventilation dampers & combustion air dampers. 25 lb-in.
Used with W7459 Economizers, W7460 Economizers
M7415A1006 REPLACES:
3430-7 M7415A1089 M7415A1048
M7415A1014 MU-12313
M7415A1022 W7499A1029
In Stock (In Stock (12))
Availability: In stock
$530.82
Details
Details
M7415A1006 - Honeywell M7415A1006 Economizer Motor Thermistor Modulating Black Motor, 24V Spring Return Damper Actuators provide 2-pos, 3-pos, floating or modulating control of economizer systems, ventilation dampers & combustion air dampers. 25 lb-in.
- Synchronous Motor.
- Quiet, high efficiency drive motor.
- Spring returns motor shaft to normal position in the event of power failure.
- High impact, glass-fiber reinforced plastic case is rugged, lightweight and corrosion resistant.
- Uses Q298B Linkage.
| Dimensions | 4 1/2 in. high x 5 in. wide x 5 3/16 in. deep 114 mm high x 127 mm wide x 132 mm deep |
| Used With | W7459 Economizers; W7460 Economizers |
| Weight | 3 lb |
| Materials | UL94-5V plastic housing |
| Comments | Vibration-- V2 level |
| Mounting | Foot-mounted |
| Frequency | 50 Hz; 60 Hz |
| Approvals | Listed File: E4436, Guide: XAPX |
| Electrical Connections | Quick-connect terminals |
| Operating Humidity Range (% RH) | 5 to 95% RH, non-condensing |
| Power Consumption | Driving-- 8 VA, Holding-- 5 VA |
| Operating Temperature Range | -25 F to +125 F -32 C to +52 C |
| Shipping and Storage Temperature Range | -30 F to +150 F -34 C to +66 C |
| Timing | Minimum-- 90 sec, Run Time Maximum-- 90 sec |
| Stroke | Fixed Stroke; Angle of Rotation-- 90 degrees maximum |
| Control Signal | Thermistor, Modulating |
| Fail Safe Mode | Spring Return |
| Torque Rating | 25 lb-in. 2.8 Nm |
| Additional Torque Ratings | Breakaway-- 40 lb-in. Breakaway-- 4.5 Nm |
| External Auxiliary Switches Available | Yes |
| Rotation to Open | CCW |
| Timing, Nominal | Opening-- 90 sec |
| Spring Return Timing | Nominal-- 18 sec |
| Feedback | No |
| Motor Shafts | 1 |
| Deadweight Load on Shaft | Power End-- 15 lbs max |
Additional Info
Additional Info
| Name | M7415A1006 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | M7415A1006 Honeywell |
