ML6161B2024

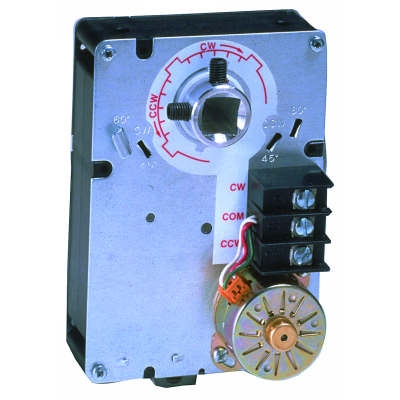

ML6161B2024 - Honeywell ML6161B2024 Damper Actuator 35 lb-in. 4Nm, Non-Spring Return 24V Direct Coupled Floating or 2-Position Actuator.
Honeywell ML6161B2024 Suggested, Possible Replacement for;
349-0100
EM-402-102
EM402-102
KA-35-VAV
ML6161B1000
ML6161B1042
ML6161B2107
In-Stock (201)
Availability: In stock
$212.47
Details
Details
ML6161B2024 - Honeywell ML6161B2024 Damper Actuator
ML6161B2024 Actuator Specifications
| Application | HVAC |
| Dimensions (in.) | 5.55 in high x 3.39 in wide x 2.52 in deep |
| Dimensions (mm) | 141 mm high x 86 mm wide x 64 mm deep |
| Includes | 4074ENY Bag Assembly |
| Weight (lb) | 1.5 lb |
| Weight (kg) | 0.68 kg |
| Materials | Steel plate and Plenum rated plastic |
| Mounting | Direct Coupled |
| Frequency | 50 Hz; 60 Hz |
| Approvals, Underwriters Laboratories Inc. | UL873, Plenum Rated |
| Tradeline Value | Tradeline |
| Electrical Connections | Screw terminals |
| Operating Humidity Range (% RH) | 5 to 95% RH, non-condensing |
| Supply Voltage | 24 Vac ±20% |
| Power Consumption | Driving-- 1.8 VA |
| ML6161B2024 Shipping and Storage Temperature Range (F) | 20 F to 130 F |
| Shipping and Storage Temperature Range (C) | -18 C to +54 C |
| Approvals, CE | 89/336/ECC, 73/23/EEC |
| Approvals, Canadian Underwriters Laboratories Inc. | cUL C22.2 No. 24-93 |
| Ambient Temperature Range (F) | 20 F to 125 F |
| Ambient Temperature Range (C) | -18 C to +50 C |
| Approvals, C-Tick | N314 |
| Environmental, Electrical or Ingress Protection Rating | NEMA 1 |
| Internal Auxiliary Switch | 0 |
| Maximum Noise Rating | Driving (dB(A) @ 1m)-- 45 |
| Stroke | 90 degrees |
| Shaft Dimensions (in.) | 3/8 to 1/2 in. square or round |
| Actuator Type | Damper |
| Control Signal | Floating; SPDT; On/Off |
| Fail Safe Mode | Non-Spring Return |
| Torque Rating (lb-in.) | 35 lb-in. |
| Torque Rating (Nm) | 4 Nm |
| Additional Torque Ratings (lb-in.) | Maximum Stall-- 70 lb-in. |
| Additional Torque Ratings (Nm) | Maximum Stall-- 8 Nm |
| External Auxiliary Switches Available | Yes, 201052B |
| Rotation to Open | By wiring |
| Rotational Stroke Adjustment | Mechanically limited at 45 or 60 degrees in CW or CCW directions |
| Timing, Nominal | Driving @ 60 Hz-- 90 sec |
| Shaft Adapter Type | Aluminum Hub, two set screws |
| Manual operation | Declutch mechanism |
| ML6161B2024 Shaft Dimensions (mm) | 10 to 13 mm square/round |
Additional Info
Additional Info
| Name | ML6161B2024 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | ML6161B2024 Honeywell |
