ML6161D2006/C

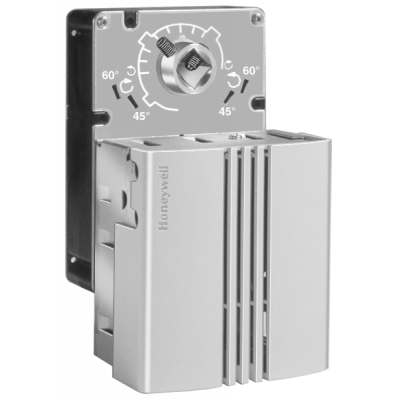

ML6161D2006/C Honeywell DCA35#24v90secSPDT,CartonPak ML6161D2006/C
Call For Availability
Availability: In stock
$107.69
Details
Details
Overview
Honeywell ML6161 controls dampers in applications including variable air volume (VAV) terminal units and for mounting on ball valves. Used with SPDT or floating thermostats or building automation controls.
Features
- Control for air damper applications with up to 10 sq. ft. assuming 35 lb-in. per sq. ft. of damper area
- A/C synchronous submotor offers consistent timing and longevity
- Magnetic coupling eliminates need for limit switches or mechanical stops
- Includes manual declutch level and bag assembly with two setscrews
- Mounts on 3/8- or 1/2-in. square or damper shaft
- Selectable 45, 60 and 90 stroke for clockwise or counterclockwise direction
Product Specifications
| Application | HVAC |
| Dimensions (in.) | 5.86 in high x 3.63 in wide x 3.74 in deep |
| Dimensions (mm) | 149 mm high x 92 mm wide x 95 mm deep |
| Includes | 4074ENY Bag Assembly |
| Weight (lb) | 2 lb |
| Weight (kg) | 0.91 kg |
| Materials | Steel plate and Plenum rated plastic |
| Comments | Includes two 5/8 x 7/8 in. double knock-out conduit openings |
| Mounting | Direct Coupled |
| Frequency | 50 Hz; 60 Hz |
| Approvals, Underwriters Laboratories Inc. | UL873, Plenum Rated |
| Electrical Connections | Screw terminals |
| Operating Humidity Range (% RH) | 5 to 95% RH, non-condensing |
| Supply Voltage | 24 Vac ±20% |
| Power Consumption | Driving-- 1.8 VA |
| Shipping and Storage Temperature Range (F) | 20 F to 130 F |
| Shipping and Storage Temperature Range (C) | -18 C to +54 C |
| Approvals, Canadian Underwriters Laboratories Inc. | cUL C22.2 No. 24-93 |
| Ambient Temperature Range (F) | 20 F to 125 F |
| Ambient Temperature Range (C) | -18 C to +50 C |
| Environmental, Electrical or Ingress Protection Rating | NEMA 1 |
| Internal Auxiliary Switch | 0 |
| Maximum Noise Rating | Driving (dB(A) @ 1m)-- 45 |
| Stroke | 90 degrees |
| Shaft Dimensions (in.) | 3/8 to 1/2 in. square or round |
| Actuator Type | Damper |
| Control Signal | Floating; SPDT; On/Off |
| Fail Safe Mode | Non-Spring Return |
| Torque Rating (lb-in.) | 35 lb-in. |
| Torque Rating (Nm) | 4 Nm |
| Additional Torque Ratings (lb-in.) | Maximum Stall-- 70 lb-in. |
| Additional Torque Ratings (Nm) | Maximum Stall-- 8 Nm |
| External Auxiliary Switches Available | Yes, 201052B |
| Rotation to Open | By wiring |
| Rotational Stroke Adjustment | Mechanically limited at 45 or 60 degrees in CW or CCW directions |
| Timing, Nominal | Driving @ 60 Hz-- 90 sec |
| Shaft Adapter Type | Aluminum Hub, two set screws |
| Manual operation | Declutch mechanism |
| Shaft Dimensions (mm) | 10 to 13 mm square/round |
Additional Info
Additional Info
| Name | ML6161D2006/C |
|---|---|
| Manufacturer | Honeywell |
| UPC: | N/A |
