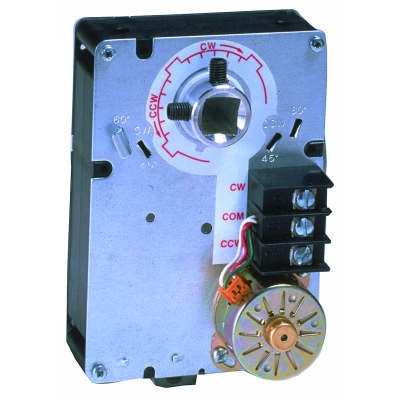

ML6174A2002 Honeywell DCA; 70lb-in; 60 Hz- 90sec; ML6174A2002
Call For Availability
Availability: In stock
$231.16
Details
Details
Overview
Used to control dampers in applications such as variable air volume (VAV) terminal units and for mounting on ball valves; suitable for use with SPDT or floating thermostats or building automation controls.
Features
- Control for air damper applications with up to 20 sq.ft. assuming 3.5 in-lb per sq.ft. of damper area, velocity independent
- Magnetic coupling eliminates the need for mechanical stops or limit switch adjustments by limiting stall torque to 130 lb-in. maximum
- Mount directly on 3/8 to 1/2 in. round and square damper shafts
- All models include manual declutch lever for ease of mounting, and bag assembly with two minimum position setscrews. 90 second timing models are suitable for use with pressure independent VAV systems
- Selectable 45, 60, and 90 degree stroke in either clockwise or counterclockwise direction.
Product Specifications
| Application | HVAC |
| Dimensions (in.) | 5.55 in high x 3.39 in wide x 2.52 in deep |
| Dimensions (mm) | 141 mm high x 86 mm wide x 64 mm deep |
| Includes | 4074ENY Bag Assembly |
| Weight (lb) | 1.5 lb |
| Weight (kg) | 0.68 kg |
| Materials | Steel plate and Plenum rated plastic |
| Mounting | Direct Coupled |
| Frequency | 50 Hz; 60 Hz |
| Approvals, Underwriters Laboratories Inc. | UL873, Plenum Rated |
| Tradeline Value | Tradeline |
| Electrical Connections | Screw terminals |
| Operating Humidity Range (% RH) | 5 to 95% RH, non-condensing |
| Supply Voltage | 24 Vac ±20% |
| Power Consumption | Driving-- 2.4 VA |
| Shipping and Storage Temperature Range (F) | 20 F to 130 F |
| Shipping and Storage Temperature Range (C) | -18 C to +54 C |
| Approvals, Canadian Underwriters Laboratories Inc. | cUL C22.2 No. 24-93 |
| Ambient Temperature Range (F) | 20 F to 125 F |
| Ambient Temperature Range (C) | -18 C to +50 C |
| Environmental, Electrical or Ingress Protection Rating | NEMA 1 |
| Internal Auxiliary Switch | 0 |
| Maximum Noise Rating | Driving (dB(A) @ 1m)-- 45 |
| Stroke | 90 degrees |
| Shaft Dimensions (in.) | 3/8 to 1/2 in. square or round |
| Actuator Type | Damper |
| Control Signal | Floating; SPDT; On/Off |
| Fail Safe Mode | Non-Spring Return |
| Torque Rating (lb-in.) | 70 lb-in. |
| Torque Rating (Nm) | 8 Nm |
| Additional Torque Ratings (lb-in.) | Maximum Stall-- 130 lb-in. |
| Additional Torque Ratings (Nm) | Maximum Stall-- 15 Nm |
| External Auxiliary Switches Available | Yes, 201052B |
| Rotation to Open | By wiring |
| Rotational Stroke Adjustment | Mechanically limited at 45 or 60 degrees in CW or CCW directions |
| Timing, Nominal | Driving @ 60 Hz-- 90 sec |
| Feedback | With accessory |
| Shaft Adapter Type | Aluminum Hub, two set screws |
| Manual operation | Declutch mechanism |
| Shaft Dimensions (mm) | 10 to 13 mm square/round |
