ML6420A3049

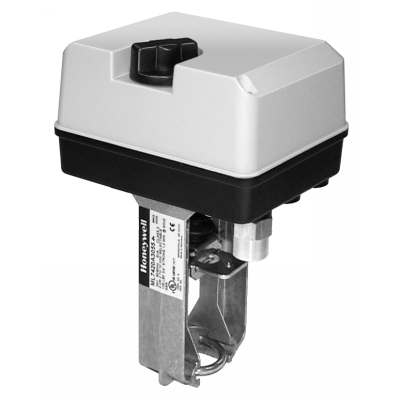

ML6420A3049 HONEYWELL. Direct Coupled, Non-Spring Return, 135 lbf Actuator for use with threaded/ flanged globe valves (3/4 in. stroke and V5013/V5011). Timing, Nominal: Driving @ 60 Hz-- 60 seconds.
In-Stock (17)
Availability: In stock
$475.00
Details
Details
ML6420A3049 Honeywell
| Dimensions | 9 9/16 inches (242 mm) high x 5 5/16 inches (135 mm) wide x 6 5/16 in. (161 mm) deep |
| Includes | 1/2 in. flexible conduit adapter; 1/2 in. conduit hub |
| Weight | 2.9 lb (or 1.3 kg) |
| Material | ABS-FR Plastic, aluminum yoke |
| Mounting | Directly on VGF Flanged Globe Valves (3/4 inches or 20mm stroke) and V5013/V5011 Globe Valves |
| Frequency | 50 Hertz; 60 Hertz |
| Electrical Connections | Screw terminals |
| Operating Humidity Range | 5 to 95% RH |
| Supply Voltage | 24 Vac ±15% |
| Power Consumption | Driving-- 6 VA |
| Ambient Temperature Range | 14 F to 122 F (or -10 C to +50 C) |
| Fluid Temperature | 150 C (300 F) Maximum |
| Control Signal | SPDT; Two position; Floating |
| Torque Rating | 135 lbf (600 Nm) |
| Stroke | 3/4 inches (20 mm) |
| Timing, Nominal | Driving @ 60 Hz-- 60 seconds |
| Cable | On actuator case, conduit connector and one knockout. |
Additional Info
Additional Info
| Name | ML6420A3049 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | ML6420A3049 Honeywell |
