ML6420A3056

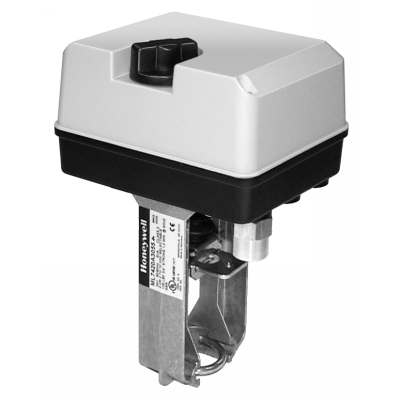

ML6420A3056 HONEYWELL. Floating Direct-Couples Non-Spring Return 135 lbf Actuator Valve. 3/4" Stroke. Timing, Nominal: Driving @ 60 Hz-- 30 seconds.
In Stock (2)
Availability: In stock
$266.75
Details
Details
ML6420A3056 Honeywell
| Dimensions | 9 9/16 inches (242 mm) high x 5 5/16 inches (135 mm) wide x 6 5/16 inches (161 mm) deep |
| Includes | 1/2 inches flexible conduit adapter; 1/2 inches conduit hub |
| Weight | 2.9 lb (or 1.3 kg) |
| Material | ABS-FR Plastic, aluminum yoke |
| Mounting | Directly on VGF Flanged Globe Valves (3/4" or 20mm stroke) and V5011/V5013 Globe Valves. |
| Frequency | 50 Hertz; 60 Hertz |
| Electrical Connections | Screw terminals |
| Operating Humidity Range | 5 to 95% RH |
| Supply Voltage | 24 Vac ±15% |
| Power Consumption | Driving-- 6 VA |
| Ambient Temperature Range | 14 F to 122 F (-10 C to +50 C) |
| Fluid Temperature | 150 C (300 F) Maximum |
| Control Signal | SPDT; Two position; Floating |
| Torque Rating | 135 lbf (600 N) |
| Stroke | 3/4 inches (20 mm) |
| Timing, Nominal | Driving @ 60 Hz-- 30 seconds |
| Cable | On actuator case, conduit connector and one knockout. |
Additional Info
Additional Info
| Name | ML6420A3056 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | ML6420A3056 Honeywell |
