ML6421A1017

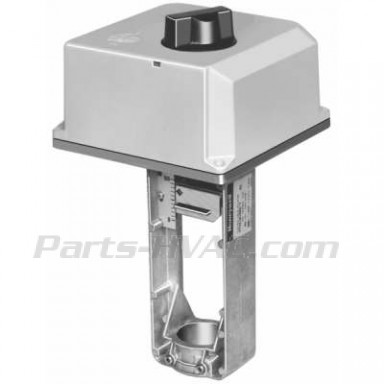

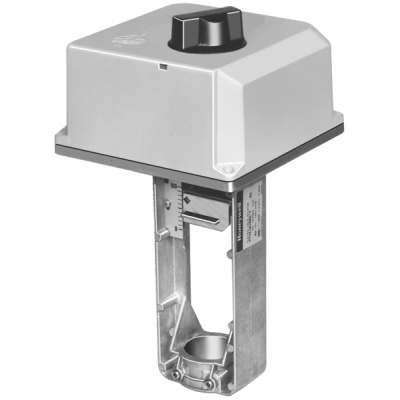

ML6421A1017 HONEYWELL. Direct-Coupled 405 lbf Valve Actuator. Timing, Nominal: Driving @ 60 Hertz-- 95 seconds.
In Stock (9)
Availability: In stock
$663.26
Details
Details
ML6421A1017 Honeywell
| Dimensions | 10 3/8 inches (264 mm) high x 7 inches (178 mm) wide x 7 inches (178 mm) deep |
| Includes | 1/2 inches flexible conduit adapter; 1/2 in. conduit hub |
| Weight | 5.1 lb (or 2.3 kg) |
| Material | ABS Plastic |
| Mounting | Directly on VGF Flanged Globe Valves and V5011/V5013 Globe Valves. |
| Frequency | 50 Hertz; 60 Hz |
| Electrical Connections | Screw terminals |
| Operating Humidity Range | 5 to 95% RH |
| Supply Voltage | 24 Vac +10%, -30% |
| Power Consumption | Driving-- 11 VA |
| Ambient Temperature Range | 14 F to 122 F (-10 C to +50 C) |
| Fluid Temperature | 150 C (300 F) Maximum |
| Control Signal | SPDT; Two position; Floating |
| Torque Rating | 405 lbf (or 1800 N) |
| Stroke | 3/4 in. (or 20 mm) |
| Timing, Nominal | Driving @ 60 Hz-- 95 seconds |
| Cable | On actuator case, two knockout holes for 1/2 inch conduit standard. |
Additional Info
Additional Info
| Name | ML6421A1017 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | ML6421A1017 Honeywell |
