ML6421B1040

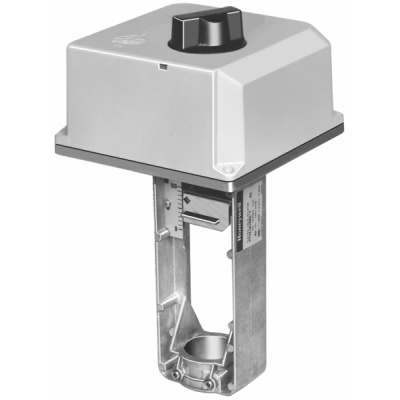

ML6421B1040 HONEYWELL. Direct-Coupled Valve Actuator. 405 lbf. Timing, Nominal: Driving @ 60 Hertz-- 175 seconds.
In Stock (4)
Availability: In stock
$591.96
Details
Details
ML6421B1040 Honeywell
| Size | 12 3/4 inches (326 mm) high x 7 inches (178 mm) wide x 7 inches (178 mm) deep |
| Includes | 1/2 inch flexible conduit adapter; 1/2 inch conduit hub |
| Weight | 5.1 lb (2.3 kg) |
| Materials | ABS Plastic |
| Mounting | Directly on VGF Flanged Globe Valves and V5011/V5013 Globe Valves. |
| Frequency | 50 Hertz; 60 Hertz |
| Electrical Connections | Screw terminals |
| Operating Humidity Range | 5 to 95% RH |
| Supply Voltage | 24 Vac +10%, -15% |
| Power Consumption | Driving-- 11 VA |
| Ambient Temperature Range | 14 F to 122 F (-10 C to +50 C) |
| Fluid Temperature | 150 C (300 F) Maximum |
| Control Signal | SPDT; Two position; Floating |
| Torque Rating | 405 lbf (1800 N) |
| Stroke | 1 1/2 inches (38 mm) |
| Cable | On actuator case, two knockout holes for 1/2 inch conduit standard. |
| Timing, Nominal | Driving @ 60 Hertz-- 175 seconds |
Additional Info
Additional Info
| Name | ML6421B1040 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | ML6421B1040 Honeywell |
