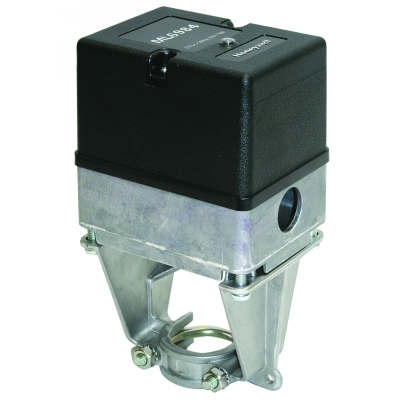

ML6984A4000
ML6984A4000 HONEYWELL. 3 or 5 Wire Operated Non-Spring Return Direct-Mounting Actuator. 160 lbf. Timing, Nominal: Driving @ 60 Hz-- 63 at 3/4 inch stroke.
In Stock (101)
Availability: In stock
$330.70
Details
Details
ML6984A4000 Honeywell
| Size | 6 13/16 inches (173 mm) high x 4 inches (102 mm) wide x 3 3/16 inches (82 mm) deep |
| Includes | Screw terminals |
| Used With | V5045 w/ 272629A; V5011, V5013, VGF21, and VGF22 up to 3 inches |
| Weight | 2.2 lb (1 kg) |
| Info | 3-wire/ 5-wire operation.; (3-wire required for XL10 controllers) |
| Mounting | Screws onto 1/4-28 UNF threaded valve stem |
| Operating Humidity Range | 15 to 95% RH at 104 F (40 C) |
| Supply Voltage | 28 Vdc; 24 Vac |
| Power Consumption | Driving-- 6 VA, Holding-- 12 VA |
| Ambient Temperature Range | 32 F to 130 F (0 C to 50 C) |
| Switch Ratings | 24 Vac |
| Fluid Temperature | 150 C (300 F) Maximum |
| Control Signal | SPDT; Two position; Floating |
| Torque Rating | 160 lbf (710 N) |
| Switches | SPDT w/ 272630D |
| Stroke | 1/2 to 1 inches (13 to 25 mm) |
| Timing, Nominal | Driving @ 60 Hz-- 63 at 3/4 inch stroke |
| Cable | 7/8 inch hole for 1/2 inch conduit |
Additional Info
Additional Info
| Name | ML6984A4000 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | ML6984A4000 Honeywell |
