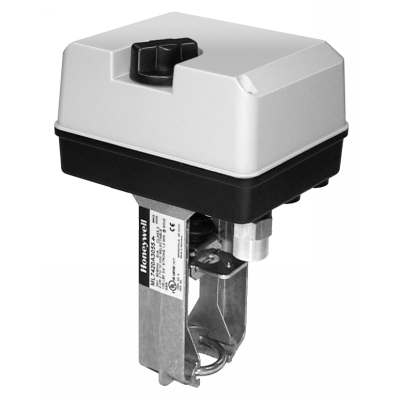

ML7420A3055
ML7420A3055 HONEYWELL. Direct-Coupled Actuator. 2/4 Inch Stroke, 135 lbf, and Driving @ 60 Hz-- 60 seconds.
In Stock (12)
Availability: In stock
$560.81
Details
Details
ML7420A3055 Honeywell
| Size | 9 9/16 inches (242 mm) high x 5 5/16 inches (135 mm) wide x 6 5/16 inches (161 mm) deep |
| Includes | 1/2 in. conduit hub; 1/2 in. flexible conduit adapter |
| Weight | 2.9 lb (1.3 kg) |
| Mounting | Directly on VGF Flanged Globe Valves (3/4 inch or 20mm stroke) and V5011/V5013 Globe Valves. |
| Frequency | 50 Hertz; 60 Hertz |
| Operating Humidity Range | 5 to 95% RH |
| Supply Voltage | 24 Vac ±15% |
| Power Consumption | Driving-- 7 VA |
| Ambient Temperature Range | 14 F to 122 F (-10 C to +50 C) |
| Fluid Temperature | 150 C (300 F) Maximum |
| Control Signal | 0 to 10 Vdc; 2 to 10 Vdc |
| Torque Rating | 135 lbf (600 N) |
| Stroke | 3/4 inch (20 mm) |
| Cable | On actuator case, conduit connector and one knockout. |
| Timing, Nominal | Driving @ 60 Hz-- 60 sec |
| Feedback | 2-10 Vdc |
| Input Impedance | 1K ohm |
Additional Info
Additional Info
| Name | ML7420A3055 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | ML7420A3055 Honeywell |
