ML7421B1023

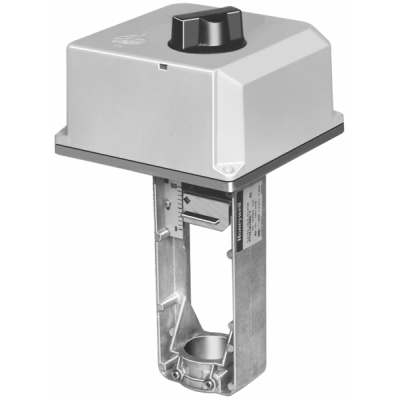

ML7421B1023 HONEYWELL. Direct Mounting Valve Actuator. Non-spring Return, 1 1/2 inch stroke, 24V, and 405 lbf rated force.
Can be used to directly replace: ACT0169 Trane
In-Stock (8)
Availability: In stock
$755.40
Details
Details
ML7421B1023 Honeywell
| Dimensions | 12 3/4 inches (326 mm) high x 7 inches (178 mm) wide x 7 inches (178 mm) deep |
| Includes | 1/2 inch conduit hub; 1/2 inch flexible conduit adapter |
| Weight | 5.1 lb (or 2.3 kg) |
| Material | ABS Plastic |
| Mounting | Directly on VGF Flanged Globe Valves and V5011/V5013 Globe Valves |
| Frequency | 50 Hz; 60 Hz |
| Electrical Connections | Screw terminals |
| Operating Humidity Range | 5 to 95% RH |
| Supply Voltage | 24 Vac +10%, -15% |
| Power Consumption | Driving-- 12 VA |
| Ambient Temperature Range | 14 F to 122 F ( or -10 C to +50 C) |
| Fluid Temperature | 150 C (300 F) maximum |
| Control Signal | 0 to 10 Vdc; 2 to 10 Vdc |
| Torque Rating | 405 lbf (1800 Nm) |
| Stroke | 1 1/2 inches (38 mm) |
| Cable | On actuator case, two knockout holes for a half inch conduit standard. |
| Feedback | 2-10 Vdc |
| Timing, Nominal | Driving @ 60 Hz-- 175 seconds |
Buy the ML7421B1023 Honeywell Actuator Today!
Additional Info
Additional Info
| Name | ML7421B1023 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | ML7421B1023 Honeywell |
