MN7220A2007

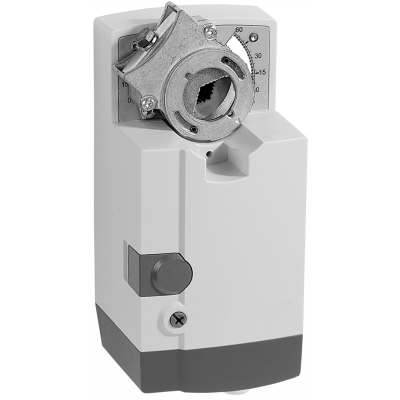

MN7220A2007 - Honeywell MN7220A2007 damper actuator, non-spring return, 24V, 175lb-in 20Nm, direct-coupled, low voltage actuator.
REPLACES:
KA-175-P
ML7284A1000
ML7284D1015
N20010
X13610451-01
Call For Availability
Availability: In stock
$349.08
Details
Details
Honeywell MN7220A2007 Honeywell Non Spring Return Direct Coupled Actuator, 24Vac, 175 Lb-In Torque, Nema 2 Rated, 0/2-10Vdc, 4-20Ma with 500 Ohm Resistor Control Signal, Manul Declutch Mechanism, 100K Ohm Voltage Input Impedance, 500 Ohm Current Input Impedance, 95 ± 3 Degree Rotational Stroke, 95 Second Nominal Drive Timing, 3/8"-11/16" Square or 3/8"-1.06" Round Damper Shafts, -5-140 Degree Ambient Temperature Rating, 5-95%RH Non Condensing Oeprating Humidity Range, Includes Mounting Bracket, Self Centering Shaft Adapter
Additional Info
Additional Info
| Name | MN7220A2007 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | MN7220A2007 Honeywell |
