MS7520A2007

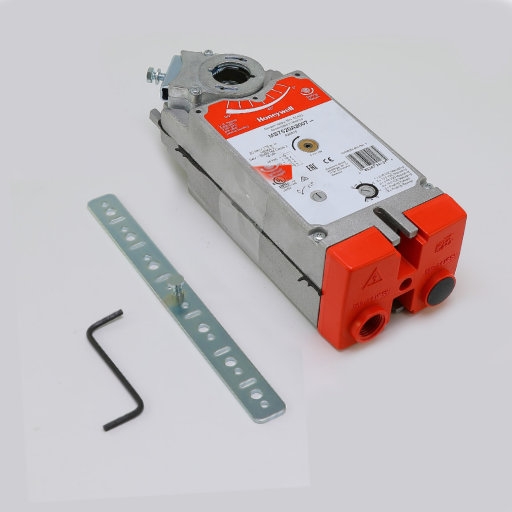

MS7520A2007 - Honeywell MS7520A2007 Actuator Spring Return 175 lb-in., 20 Nm 24V modulating direct-coupled floating actuator.
REPLACES:
KAS-175-M
ML7295A1006
ML7295A1014
ML7425A1004
MS7520A1007
S20010
SQB72.1
ACT0478 / ACT00478
In-Stock (70)
Availability: In stock
$560.75
Details
Details
MS7520A2007 Honeywell Spring Return Direct Coupled Actuator, 24Vac, 0/2-10 Vdc, 4-20Ma with 500 Ohm Resistor, On/Off, SPDT, Floating Control Signal, 90 Second Nominal Driving Time, 20 Second Maximum Spring Return, 175 Lb-In Torque, 95 ± 3 Degree Rotational Stroke, Nema 2 Rated, Manual Operation Crank, 3/8"-1.06" Round or 3/8"-11/16" Square Damper Shafts, Self Centering Clamping Adapter, 5-95% RH Non Condensing Operating Humidity Range, -40-140 Degree Temperature Range
Additional Info
Additional Info
| Name | MS7520A2007 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | MS7520A2007 Honeywell |
