NXS0750A1006

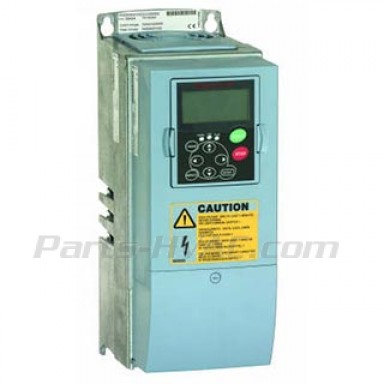

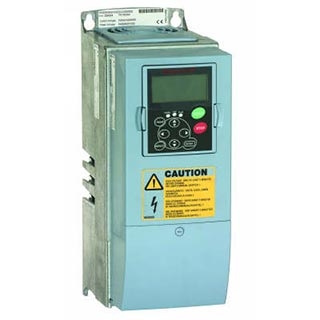

NXS0750A1006 Honeywell VFD - Variable Frequency Drive 75 hp, 460V, Nema 1, 3 Phase W/Display **CAll To Order: (570) 283-9315
Call For Price and Availability
Availability: In stock
$0.00
Details
Details
Overview
NXS0750A1006 Honeywell - Variable Frequency Drives (VFD) accept a control input and then output tailored PWM control signal to operate(fans, pumps, etc.) with maximum efficiency. The VFD can be field-programmed without any extra devices or computer connections.
Features
- Seven configurable applications built in.
- Easy commissioning through software or control panel.
- Devices can be wall-mounted or panel-mounted.
- Eleven protective functions (see Form 63-2600, Users Manual, Technical Data sections).
- Compact Size.
- Insulated gate bi-polar transistor (IGBT) technology.
- Modbus, BacNet, Device Net, Profibus, LobBus, NS available as options cards.
Product Specifications
| Dimensions (in.) | 9.3 x 23.3 x 10.1 |
| Dimensions (mm) | 236.2 x 519.9 x 256.5 |
| Weight (lb) | 77.2 lb |
| Weight (kg) | 35.0 kg |
| Frequency | 0 Hz to 320 Hz |
| Voltage | 460 Vac |
| Operating Temperature Range (F) | High Overload 14 to 122; Low Overload 14 to 104 |
| Operating Temperature Range (C) | High Overload -10 to 50; Low Overload -10 to 40 |
| Enclosure | NEMA 1 |
| Relay Outputs | 24 Vdc/8A; 125 Vdc/0.4A; 250 Vac/8A |
| Horsepower | 75 HP |
| Current Ratings | 105A |
| Analog Current Output | 0 (4) - 20 mA, max 500 ohm |
| Bypass | Drive alone |
| Drive Family | NXS |
| Type of RFI Filter | Industrial filter |
| Continuous Output Current | overload 1.5 x High overload current (1min/10min); overload 1.1 x Low overload current (1min/10min) |
| Starting Torque | 200% High; 150% Low |
| Peak Current | 2 x high overload current, 2 seconds every 20 seconds |
| Acceleration time | 0 - 3000 sec |
| Deceleration time | 0 - 3000 sec |
| Analog Voltage Input | 0 - 10 Vdc , 200K ohm |
| Analog Current Input | 0 (4) - 20 mA, 250 ohm differential |
| Digital Output | 50 mA/48v open collector |
| Reference Output Voltage | +10V, +3%, max 10mA |
| Auxiliary Voltage | 24V, ± 15%, max 250 mA |
| Frame Type | FR7 |
| Layout | Stand-alone drive |
Additional Info
Additional Info
| Name | NXS0750A1006 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | No |
