PIT00082

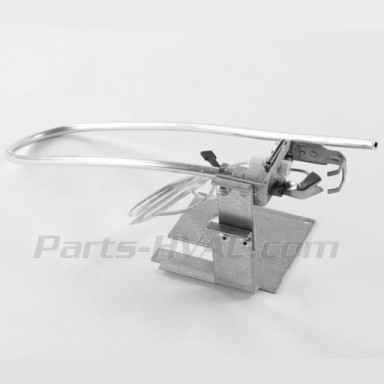

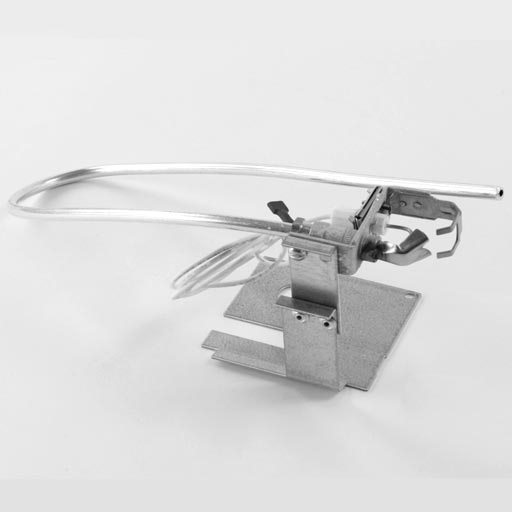

PIT0082 Trane Q3451 Pilot Assembly is a non-primary-aerated combination pilot burner and igniter designed for use with intermittent pilot systems. It operates with Honeywell controls such as the S86, S860, S8610, or S8670 series. This pilot burner is compatible with both natural gas and LP gas systems and includes a pilot burner with bracket, ceramic-insulated Kanthal flame rod/spark igniter, and ground strap. The single tip style and three-position adjustable hood allow for the desired flame pattern.Voomi Supply

Specifications:

• Manufacturer: Trane

• Part Number: PIT0082

• Fuel Type: Natural Gas or LP

• Ignition Type: Electronic Ignition

• Aeration: Non-primary

• Mounting Bracket: Type U

• Compression Fitting Size: 1/4 in. and 1/8 in.

• Orifices Included: BCR-20 (0.020"), BCR-18 (0.018"), BBR-12 (0.012"), BBR-11 (0.010")

• Tip Style: Single

Ideal for HVAC systems requiring reliable burner ignition, including furnaces, boilers, and other gas-fired equipment.
