PWT100
Wet Diff Pressure Sensor 0-10/4-20out psid Selectable *FREE Shipping
Call For Price and Availability
Availability: In stock
$0.00
Details
Details
Overview

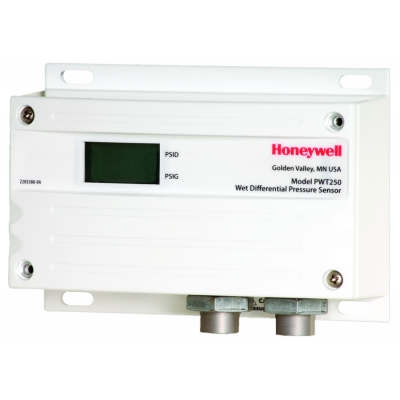

The PWT Series wet/wet differential pressure sensors provide reliable, accurate measurement and control of many applications, including pump differential pressure, chiller/boiler differential pressure drop, and CW/HW system differential pressure.
Features
- The PWT Pressure Sensors incorporate microprocessor profiled sensors for exceptional accuracy and reliability.
- Field-selectable 4-20 mA, 0-5 Vdc, or 0-10 Vdc output.
- Jumper-selectable slow or fast response time.
- Switch-selectable pressure ranges.
- The jumper-selectable output switch for normal (4-20 mA) or reverse (20-4mA) operation provides application flexibility.
- Rugged, die-cast enclosure provides NEMA 4 sealing.
- Jumper-selectable port swap feature.
- All models offer both push button and digital input to zero the output.
Product Specifications
| Dimensions (in.) | 4 in. high x 5 51/64 in. wide x 2 13/64 in. deep |
| Dimensions (mm) | 102 mm high x 147 mm wide x 57 mm deep |
| Operating Humidity Range (% RH) | 10 to 90% RH, non-condensing |
| Voltage | 12 to 30 Vdc or 24 Vac |
| Operating Temperature Range (F) | -14 F to 131 F |
| Operating Temperature Range (C) | -10 C to 55 C |
| Approvals, CE | CE |
| Output | 4-20mA, 0-5Vdc or 0-10Vdc selectable |
| Connection Size (in.) | 1/8 in. NPT female, stainless steel 17-4 PH |
| Pressure Range (psi) | 0-100, 0-50, 0-20, 0-10 psid |
| Accuracy | ±1% F.S. for 0-100, 0-50, 0-20 psid; ±2% F.S. for 0-10 psid |
| Display | Yes |
| Proof pressure | 2x max. F.S. range |
| Burst pressure | 5x max. F.S. range |
Additional Info
Additional Info
| Name | PWT100 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | PWT100 Honeywell |
