Q5022A1001

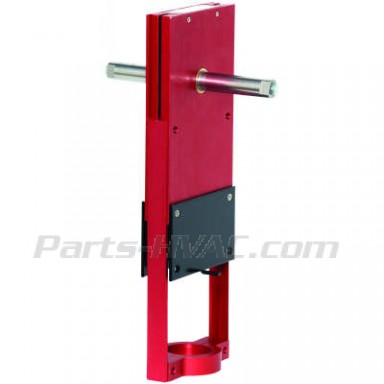

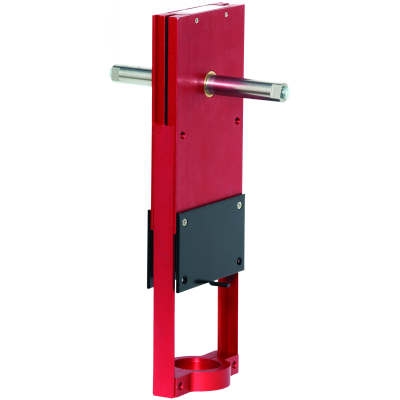

Globe Valve Tandem DCA Linkage **FREE Shipping
Call For Price and Availability
Availability: In stock
$0.00
Details
Details
Overview
Q5022A,B Linkages combine Honeywell direct coupled rotary actuators to a globe valve and work with 2 and 3-way globe valves up to 6 inch pipes Q5022A enhances close-off ratings with globe valves up to 3 inches Q5022B is used with globe valves 4 to 6 inches.
Features
- For use with 2-way and 3-way globe valves in two-position service or modulating.
- For use with 175 lb.-in. (S20) spring return or 175 and 300 lb.-in. (N20, N34) non-spring return DCAs.
- Accepts single or dual matching actuators for higher close-off pressures.
- Fail-safe operation with spring return DCAs, field selectable normally open or normally closed for direct or reverse-acting valves.
- Linkage threads onto valve stem.
- Oilite™ self-lubricated actuator shaft bearing.
- Anodized extruded aluminum housing.
- Maintenance-free construction.
- Precision roller-bearing rack construction to prevent premature valve packing leakage and wear..
- Flexible actuator mounting orientation.
Product Specifications
| Includes | Anti-spin function |
| Used With | V5011; V5013; VGF under 4 in. |
| Comments | This linkage family is not compatible with the 43196000 high temperature kits |
| Mounting | Linkage mounts directly to the valve bonnet; actuator(s) mount on linkage |
| Linkage Type | Valve |
| Used with Actuator | Direct Coupled Actuator |
| Bonnet Size (in.) | 1 3/8 in. |
| Stroke | 3/4 in. |
| Shaft Dimensions (in.) | 1/4 -28UNF-2A |
| Stem Force Rating (lbf) | 1117 lbf max |
| Stem Force Rating (N) | 4969 N max |
Additional Info
Additional Info
| Name | Q5022A1001 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | Q5022A1001 Honeywell |
