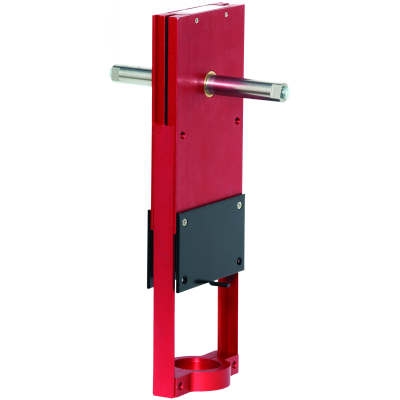

Globe Valve, TANDEM-D MOUNT DCA Linkage 4" + in **OBSOLETE**
HU5024-002 & Q5024B2240 are the Direct Cross Reference For This Part.
Call For Price and Availability
Availability: In stock
$0.00
Details
Details
Overview
Q5022A,B Linkages combine Honeywell direct coupled rotary actuators to a globe valve and work with 2 and 3-way globe valves up to 6 inch pipes Q5022A enhances close-off ratings with globe valves up to 3 inches Q5022B is used with globe valves 4 to 6 inches
Features
- For use with 3-way and 2-way globe valves in two-position service or modulating.
- For use with 175 lb.-in. (S20) spring return or 175 and 300 lb.-in. (N20, N34) non-spring return DCAs.
- Accepts dual matching or single actuators for higher close-off pressures.
- Fail-safe operation with spring return DCAs, field selectable normally normally closed or open for direct or reverse-acting valves.
- Linkage threads onto valve stem.
- Oilite™ self-lubricated actuator shaft bearing.
- Anodized extruded aluminum housing.
- Maintenance-free construction.
- Precision roller-bearing rack construction to prevent premature valve packing wear and leakage.
- Flexible actuator mounting orientation.
Product Specifications
| Includes | Anti-spin function |
| Used With | V5011; V5013; VGF over 3 in. |
| Comments | This linkage family is not compatible with the 43196000 high temperature kits |
| Mounting | Linkage mounts directly to the valve bonnet; actuator(s) mount on linkage |
| Linkage Type | Valve |
| Used with Actuator | Direct Coupled Actuator |
| Bonnet Size (in.) | 1 7/8 in. |
| Stroke | 1 1/2 in. |
| Shaft Dimensions (in.) | 7/16 -20UNF-2A |
| Stem Force Rating (lbf) | 555 lbf max |
| Stem Force Rating (N) | 2468 N max |
Additional Info
Additional Info
| Name | Q5022B1009 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | Q5022B1009 |
