RM7840L1018

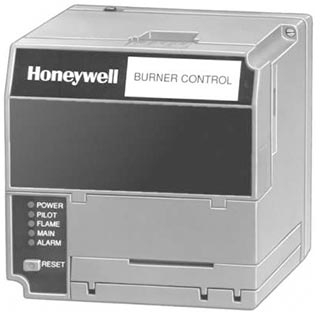

RM7840L1018 Honeywell FSG Control Auto-Programming Module
In Stock (67)
Availability: In stock
$4,410.95
Details
Details
RM7840L1018 Overview
Honeywell RM7840L1018 microprocessor-based burner integrated control for automatically fired coal, gas, oil or combination fuel single burner applications. Provides functional capability, safety functional capability and features beyond conventional controls.
Features
- Functions include automatic burner sequencing, system status indication, flame supervision, or self-diagnostics and troubleshooting.
- Access for external electrical voltage checks.
- Application flexibility and communication interface capability.
- Five LEDs provide sequence info.
- Five function Run/Test Switch.
- Interchangeable plug-in flame amplifiers.
- Remote or Local annunciation of RM7840 operation and fault information.
- Nonvolatile memory retains history files and lockout status after loss of power.
- RM7840L1018 is compatible with existing Honeywell flame detectors.
Product Specifications
| Application | Programming Control |
| Dimensions (in.) | 5 in. wide x 5 in. high x 5 1/4 in. deep with Q7800A Subbase x 6 3/32 in. deep with Q7800B Subbase |
| Dimensions (mm) | 127 mm wide x 127 mm high x 133 mm deep with Q7800A Subbase x 155 mm deep with Q7800B Subbase |
| Weight (lb) | 1 lb 13 oz |
| Weight (kg) | 0.8 kg |
| Comments | LHL-LF&HF Proven |
| Frequency | 50 Hz; 60 Hz (±10%) |
| Approvals, Underwriters Laboratories Inc. | Component Recognized, File No. MP268; Guide No. MCCZ. |
| Approvals, Canadian Standards Association | Certified, File No. LR95329-3. |
| Voltage | 120 Vac (+10, -15%) |
| Shipping and Storage Temperature Range (F) | -40 F to +140 F |
| Shipping and Storage Temperature Range (C) | -40 C to +60 C |
| Approvals, Federal Communications Commission | FCC Part 15, Class B, Emissions. |
| Flame Establishing Period - Pilot | 4 sec or 10 sec |
| Flame Establishing Period - Main | 10 sec or 15 sec |
| Interlocks | Lockout |
| Preignition | Yes |
| PrePurge | Determined by ST7800A Purge Timer Card |
| PostPurge | 15 sec |
| Early Spark Termination | Yes, 5 sec |
| Required Components | Q7800A,B Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame Signal Amplifier. ST7800A Plug-in Purge Timer Card. |
| AirFlow Check | User selectable |
| Second Stage Pilot Valve | Interrupted |
| Pilot Type | Interrupted |
| Vibration | 0.5 G environment |
| Approvals, Control Safety Devices | Acceptable: CSD-1 |
| Approvals, Swiss RE | Acceptable |
| RM7840L1018 Approvals, Factory Mutual | Report No. OX4A5.AF. |
Additional Info
Additional Info
| Name | RM7840L1018 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | RM7840L1018 |
