SEN01564

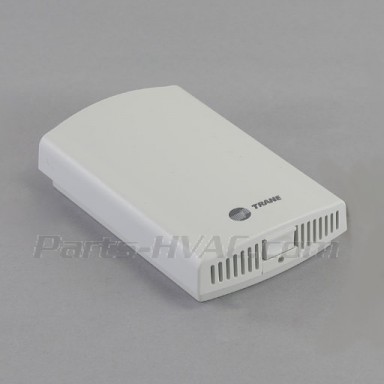

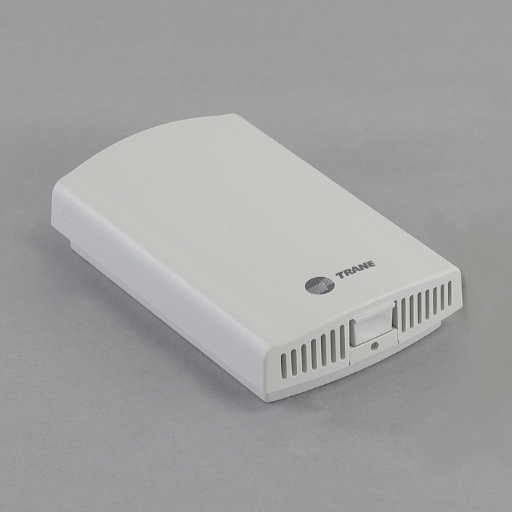

SEN01564 Trane – CO₂ Wall Mount Sensor, 0–2000 PPM, NDIR, 24V, 4–20 mA

The SEN01564 Trane CO₂ sensor is a wall-mounted unit designed to provide accurate air quality monitoring for commercial HVAC systems. Using non-dispersive infrared (NDIR) sensing technology, this sensor detects CO₂ levels from 0 to 2,000 PPM with an accuracy of ±30 ±3% of reading. Its 4–20 mA output makes it compatible with building automation systems for demand-controlled ventilation and energy savings.

Built with an IP65-rated enclosure and compliant with ROHS standards, the SEN01564 is ideal for indoor environments requiring dependable air quality control. It operates on 24V AC or DC and installs easily on any flat surface.

• Type: Wall Mount CO₂ Sensor
• Identical Part:  SEN1564
• Sensing Element: Non-Dispersive Infrared (NDIR)
• Range: 0 to 2,000 PPM
• Accuracy: ±30 ±3% of reading
• Output: 4–20 mA
• Voltage: 24V AC / 24V DC
• Frequency Rating: 50/60 Hz
• Mounting Type: Wall
• Enclosure Rating: IP65
• Operating Temperature: 32°F to 113°F
• Standards: ROHS compliant
• Country Of Origin:  US

Applications:

• Demand-controlled ventilation
• Indoor air quality management
• Building automation systems
• Commercial HVAC installations
