SEN01655
SEN01655 Trane – Programmable thermal dispersion flow sensor with 35 cm/s setpoint. 1/2" NPT connection, 393.7" lead, side-mount recommended. Designed for HVAC fluid flow detection. Identical To SEN1655
In-Stock (2)
Availability: In stock
$458.01
Details
Details

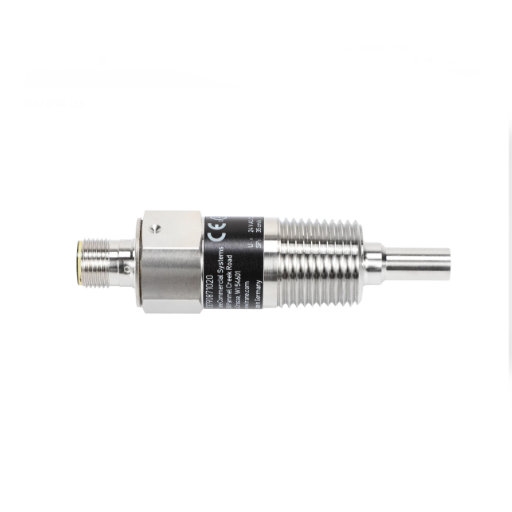

SEN01655 Trane – Programmable Thermal Dispersion Flow Sensor (Setpoint: 35 cm/s)
The SEN01655 Trane is a thermal dispersion flow sensor engineered for accurate fluid velocity detection in HVAC systems. It features a programmable setpoint of 35 cm/s and is designed to monitor liquid flow with high precision using thermal dispersion technology.
Ideal for side-mount installation on horizontal piping, this sensor includes a 1/2-inch NPT connection and a long 393.7-inch pre-attached cable for flexible setup. It operates in demanding environments with temperature ranges from -22°F to 140°F and relative humidity up to 95%.
Trane recommends mounting the sensor on the side of the pipe to prevent debris accumulation on the tip, ensuring consistent and accurate measurements. Accuracy is rated at ±5 cm/sec at 20°C in a 2-inch ID pipe.
- Type: Thermal Dispersion Flow Sensor
- Identical Part#: SEN1655
- Setpoint: 35 cm/s (programmable)
- Connection: 1/2" NPT
- Accuracy: ±5 cm/s at 20°C in a 2" ID pipe
- Mounting Type: Side-mount on horizontal pipe recommended
- Wire Length: 393.7 inches
- Current Rating: 45 mA AC / 65 mA DC
- Temperature Range: -22°F to 140°F
- Humidity Range: 5% to 95% RH
- Country of Origin: DE
Applications:
- Chillers and heat exchangers
- Hydronic HVAC systems
- Commercial flow monitoring and automation
Additional Info
Additional Info
| Name | SEN01655 |
|---|---|
| Documentation | Shipping |
| Manufacturer | Trane |
| UPC: | SEN01655 Trane |
