SEN02129
SEN02129 Trane Sensor, Liquid Level, Top Mount, 90 mm, 24V DC, ships with GKT04098 gasket. IPX5 enclosure, rated 450 PSIG.
In-Stock (1)
Availability: In stock
$968.63
Details
Details

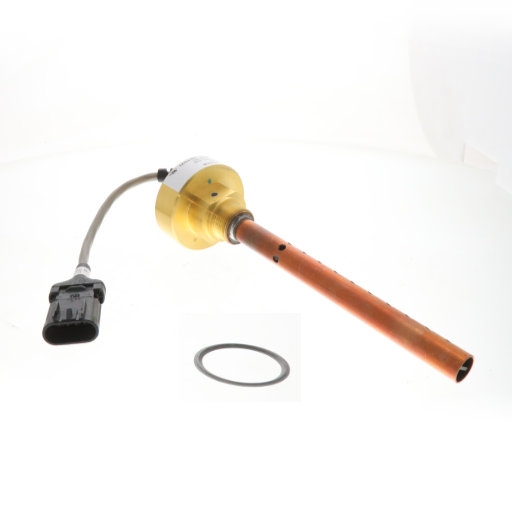

SEN02129 Trane Liquid Level Sensor, Top Mount, 90 mm, 24V DC
The SEN02129 Trane is a high-accuracy liquid level sensor designed for HVACR systems requiring top-mounted configurations. This 90 mm sensor operates at 24V DC ±10% and draws 22 mA of current. With an IPX5-rated enclosure, it withstands moisture exposure and tough system environments. The sensor supports a measurement range of 0 to 90 mm (+0.00 / -5.00) and is rated up to 450 PSIG. It is ideal for monitoring refrigerant or fluid levels in liquid line applications and comes with gasket GKT04098 for secure installation.
Specifications:
-
Part Number: SEN02129
-
Alternate Part Number: SEN2129
-
Brand: Trane
-
Type: Liquid Line Level Sensor
-
Mounting Type: Top Mount
-
Enclosure Rating: IPX5
-
Sensor Range: 0 to 90 mm (+0.00 / -5.00)
-
Size: 90 mm
-
Voltage Rating: 24V DC ±10%
-
Current Draw: 22 mA
-
Pressure Rating: 450 PSIG
-
Humidity Range: 5% to 100% RH
-
Shipping Weight: 1.2 lbs
-
Includes: GKT04098 gasket
Applications:
Engineered for top-mount HVACR applications where consistent and durable liquid level detection is essential. Suitable for commercial and industrial HVAC systems.
Additional Info
Additional Info
| Name | SEN02129 |
|---|---|
| Documentation | Shipping |
| Manufacturer | Trane |
| UPC: | SEN02129 Trane |
