SEN1522
SEN1522 Trane – Dual setpoint zone sensor (BAYSENS110A) with LED system lights, manual or auto changeover, and two-fan control. Optional wall plate PLT04561 available. Identical To SEN01522
In-Stock (1)
Availability: In stock
$301.47
Details
Details

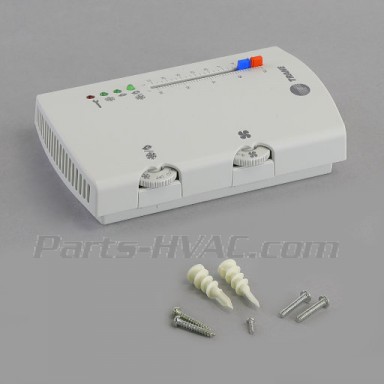

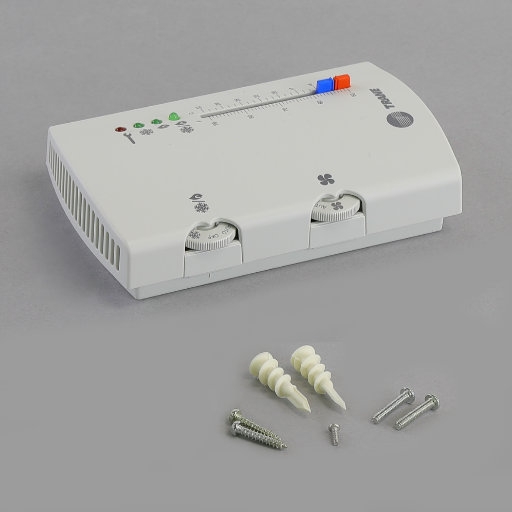

SEN1522 Trane – Dual Setpoint Zone Sensor with LED Indicators (BAYSENS110A)
The SEN1522 Trane is a vertical-mount zone sensor that features dual setpoint control, system function LED indicators, and support for manual or automatic changeover. Designed for use in Trane HVAC systems, this model supports two-speed fan operation and is ideal for commercial zone temperature control applications.
Built with a white, plenum-rated ABS/polycarbonate enclosure, it offers ±0.2°C accuracy at 25°C, operates between 32°F and 122°F, and runs efficiently with a power draw of only 0.1 watts. The unit includes LED feedback for system functions and integrates easily with existing BAYSENS110A-compatible controllers.
- Type: Dual Setpoint Zone Sensor with LED
- Model: BAYSENS110A
- Mounting Type: Vertical
- Changeover: Manual or Automatic
- Fan Control: Two-speed fan system
- Indicators: LED system function lights
- Accuracy: ±0.2°C at 25°C
- Temperature Range: 32°F to 122°F
- Operating Humidity: 5% to 95% RH
- Voltage Rating: 5.25V DC max
- Current Draw: 10.5 mA
- Power Usage: 0.1 W
- Material: ABS/polycarbonate (plenum rated)
- Optional Accessory: Wall Plate (PLT04561)
- Country of Origin: CN
- Alternate Part#: SEN1522
Applications:
- Commercial zone temperature management
- Trane HVAC systems using BAYSENS110A controllers
- Dual setpoint control with LED feedback indicators
Additional Info
Additional Info
| Name | SEN1522 |
|---|---|
| Documentation | Shipping |
| Manufacturer | Trane |
| UPC: | SEN1522 Trane |
