T4039S1016
T4039S1016 Honeywell
T4039S1016 Honeywell - Fan Coil Thermostat, 4 Pipe.
120 to 277 Vac, Tan, 55 F to 95 F, marked COOL-WARM, Switch HEAT-OFF-COOL & HI-MED-LO, manual or automatic changeover Heating-Cooling Systems.
REPLACES: T4039T1006
Replacement - In Stock (4)
Availability: In stock
$203.90
Details
Details
T4039S1016 Honeywell
T4039S1016 Honeywell - Fan Coil Thermostat, 4 Pipe.
120 to 277 Vac, Tan, 55 F to 95 F, marked COOL-WARM, Switch HEAT-OFF-COOL & HI-MED-LO, manual or automatic changeover Heating-Cooling Systems.
REPLACES: T4039T1006
| Application | 4 pipe fan coil, manual heat-cool changeover |
| Dimensions | 4 5/8 in. high x 4 15/16 in. wide x 1 5/16 in. deep. 118 mm high x 125 mm wide x 33 mm deep |
| Includes | Allen wrench for cover and mounting screws |
| Mounting | 4 in. square outlet box or 2-ganged outlet box |
| Electrical Ratings | Fan Switch: 120 Vac: 5.5 AFL, 33.0 ALR; 240 Vac: 2.75 AFL, 16.5 ALR; 277 Vac: 2.4 AFL, 14.4 ALR; Thermostat (Valve load): 120 Vac: 0.32 AFL, 1.0 A ALR; 240 Vac: 0.16 AFL, 0.50 ALR; 277 Vac: 0.14 AFL, 0.43 ALR |
| Frequency | 50 Hz; 60 Hz |
| Approvals | File No. E34436, Vol 2, dated 3-19-73; Guide No. XAPX Certified |
| Operating Humidity Range (% RH) | 5 to 95% RH, non-condensing |
| Supply Voltage | 120 to 277 Vac |
| Switch Positions (System) | HEAT-OFF-COOL |
| Switch Positions (Fan) | HI-MED-LO |
| Differential Temperature | The differential from make of one contact to make of the opposite contact is 7 F maximum with a positive deadspot. The differential from make of one contact to make of the opposite contact is 4 C maximum with a positive deadspot. |
| Color | Tan |
| Display | None |
| Changeover | Manual |
| Setting Temperature Range | 55 F to 95 F, marked COOL-WARM 13 C to 35 C, marked COOL-WARM |
Additional Info
Additional Info
| Name | T4039S1016 |
|---|---|

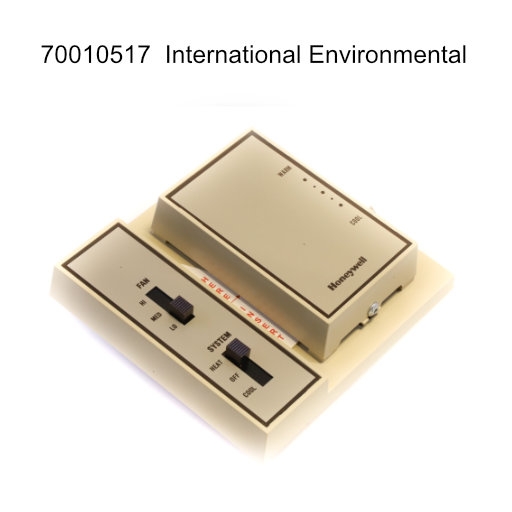

| Documentation | Direct Replacement: 70010517 International Environmental |
| Manufacturer | Honeywell |
| UPC: | T4039S1016 Honeywell |
