T4398B1029

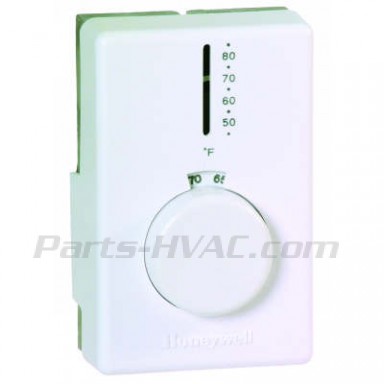

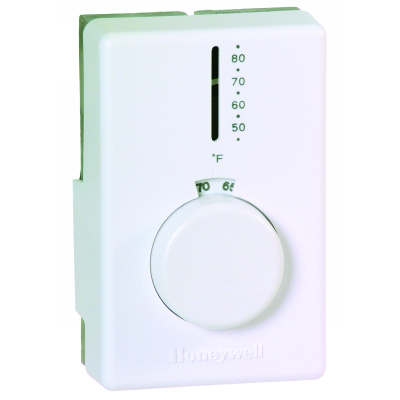

T4398B1029 Honeywell - Non-programmable Electric 1 Heat Thermostat High performance; 120 Vac; 208 Vac; 240 Vac; 277 Vac; DPST; With Thermometer, range stops, locking cover screws, Positive Off; Vapor filled dual diaphragm.
REPLACES: T4098B1030
In Stock (18)
Availability: In stock
$60.19
Details
Details
T4398B1029 Honeywell
The T4398B1029 Honeywell is a high performance electric heat thermostat that provides precise line voltage control of resistive-rated electric heating equipment.
| Hazmat Information | UN 2037 Butane (Receptacles, small, containing gas cartridges), 2.1, LTD. QTY, one Fiberboard box X 1kg |
| Application | Electric baseboards, convectors and fan forced heaters (resistive rated loads). |
| Dimensions | 4 1/2 in. high x 2 7/8 in. wide x 2 5/8 in. deep 115 mm high x 73 mm wide x 67 mm deep |
| Includes | Thermometer, range strops, locking cover screws, Positive Off |
| Mounting | Vertical |
| Electrical Rating | Non-inductive resistive 22A at 120/208/240 Vac. 19A at 277 Vac. |
| Frequency | 60 Hz |
| Stages | 1 Heat |
| Electrical Connections | 6 in. (150 mm) copper leadwires, suitable for connecting to aluminum wiring if approved CO/ALR solderless connectors are used. |
| Supply Voltage | 120 Vac; 208 Vac; 240 Vac; 277 Vac |
| Sensor Element | Vapor filled dual diaphragm |
| Accuracy | 1 C |
| Differential Temperature | 2 F 1 C |
| Color | Premier White® |
| Ambient Temperature Range | 50 F to 80 F 10 C to 25 C |
| Switch Action | DPST |
| Setting Temperature Range | 50 F to 80 F |
| External Sensors Available | Outdoor Sensor optional |
Additional Info
Additional Info
| Name | T4398B1029 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | T4398B1029 Honeywell |
